Description

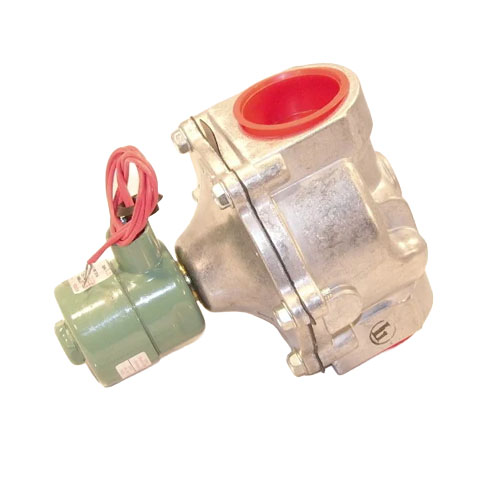

The ASCO 8215C83 is a heavy-duty 2-way, normally open solenoid valve engineered for air-fuel gas vent applications in commercial and industrial HVAC and combustion systems. With a generous 2″ NPT connection, a high flow coefficient of 58 Cv, and a rated capacity of 3,100,000 BTU/hr, this valve is built to handle demanding gas-handling environments with precision and reliability.
Key Features
- 2-way, normally open (N.O.) configuration — valve opens when de-energized for fail-safe gas venting
- 2″ NPT pipe connection for straightforward installation in standard gas piping systems
- High flow coefficient of 58 Cv for maximum throughput in high-capacity applications
- Rated capacity of 3,100,000 BTU/hr — ideal for large commercial burners and combustion systems
- Operating pressure range: 0–25 PSI for reliable performance across typical gas supply pressures
- 120VAC coil voltage for compatibility with standard commercial electrical systems
- Aluminum body construction for lightweight durability and corrosion resistance
- NBR (Buna-N) seals for excellent compatibility with natural gas, propane, and air-fuel gas mixtures
- NEMA 1 enclosure rating suitable for general-purpose indoor installations
Application
The ASCO 8215C83 is designed for use as a gas vent valve in air-fuel gas systems, making it an essential safety and control component in commercial boilers, burner management systems, and industrial combustion equipment. Its normally open design ensures gas is safely vented when the valve is de-energized, supporting fail-safe system operation.
Specifications
- SKU: 8215C83
- Brand: ASCO
- Valve Type: 2-Way Solenoid, Normally Open
- Pipe Size: 2″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 58
- Capacity: 3,100,000 BTU/hr
- Pressure Range: 0–25 PSI
- Body Material: Aluminum
- Seal Material: NBR (Buna-N)
- Enclosure: NEMA 1
- Media: Air-Fuel Gas
