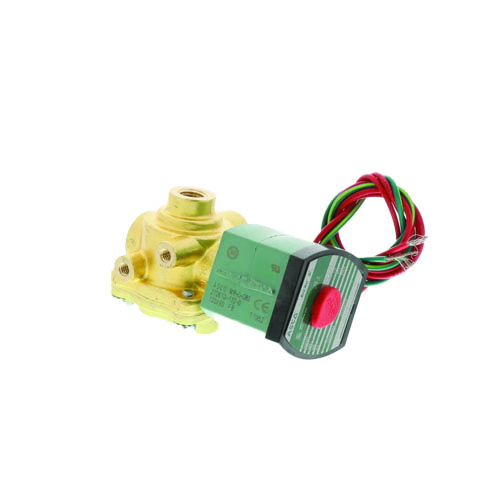

ASCO 8342G1 4-Way Direct Acting General Service Solenoid Valve
The ASCO 8342G1 is a heavy-duty, direct acting 4-way solenoid valve engineered for reliable general service applications in HVAC, pneumatic, and fluid control systems. With a robust brass body, NBR seals and disc, and a NEMA 4X rated enclosure, this valve delivers dependable performance in demanding indoor and outdoor environments where moisture and corrosion resistance are essential.
Key Features
- 4-way valve configuration for versatile directional control of air, water, and light oil
- Direct acting design — operates without minimum pressure differential requirement
- 1/4″ NPT port connections for easy installation into standard piping systems
- 120VAC coil voltage for compatibility with common control circuits
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) seals and disc for excellent compatibility with air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, resistant to washdown, rain, and corrosion
Specifications
- SKU: 8342G1
- Brand: ASCO
- Valve Type: 4-Way Solenoid Valve
- Operation: Direct Acting
- Port Size: 1/4″ NPT
- Voltage: 120VAC
- Pressure Range (Air): 0–125 PSI
- Pressure Range (Water & Light Oil): 0–100 PSI
- Body Material: Brass
- Seal & Disc Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Service Type: General Service
- Compatible Media: Air, Water, Light Oil
Applications
- Pneumatic cylinder and actuator control
- HVAC air handling and damper control systems
- Water and light oil distribution and diversion
- Industrial automation and process control
- Outdoor and washdown environments requiring NEMA 4X protection
