Description

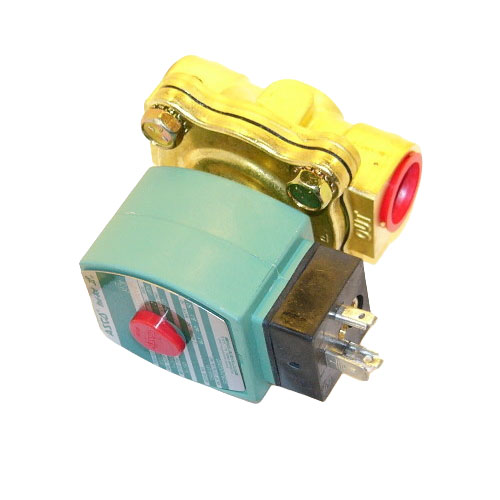

The ASCO SC8210G2 is a general-service, pilot-operated, 2-way normally closed solenoid valve engineered for reliable fluid control across a wide range of HVAC, industrial, and commercial applications. Built with a durable brass body and NBR (Buna-N) seals, this valve delivers dependable performance with air, water, and light oil media.
Key Features
- 2-way, normally closed configuration — valve closes when de-energized for fail-safe operation
- Pilot-operated design for efficient actuation across rated pressure ranges
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) seals for compatibility with air, water, and light oil
- NEMA 4X enclosure — watertight and corrosion-resistant for indoor and outdoor use
- DIN terminal connection for easy, standardized wiring
- General service rating suitable for a broad range of HVAC and industrial applications
Specifications
- SKU: SC8210G2
- Brand: ASCO
- Configuration: 2-Way, Normally Closed
- Operation: Pilot Operated
- Pipe Size: 1/2″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 4
- Pressure Range — Air: 5–200 PSI
- Pressure Range — Water: 5–150 PSI
- Pressure Range — Light Oil: 5–135 PSI
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Electrical Connection: DIN Terminals
Applications
- HVAC water and air control systems
- Light oil and fuel handling systems
- Compressed air and pneumatic systems
- General industrial fluid control
- Outdoor or wash-down environments (NEMA 4X rated)
