Description

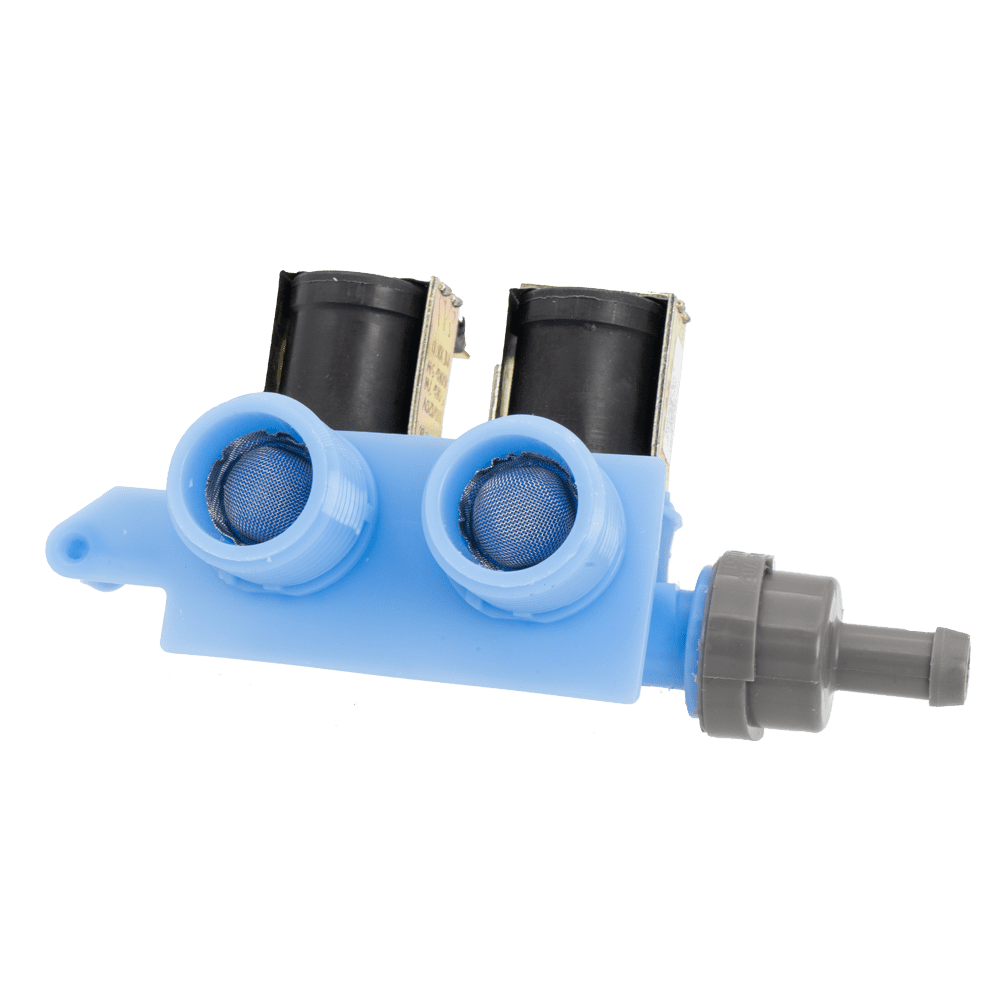

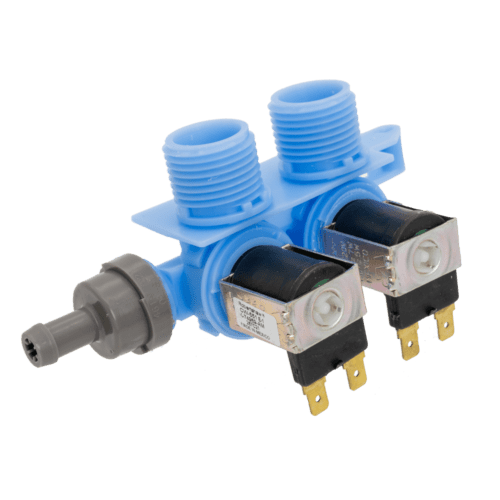

The Robertshaw CW-551 is a 120 VAC and 60 Hertz, E-1 (non-regulated) Mixing Water Valve Series, designed for laundry clothes washer applications.
Applications
- Residential
- Clotheswasher
- Mixing Water Valve E-2
Features
- Pilot-operated diaphragm provides high flow capacity with minimum power requirements
- Compact design compared to predecessor valves to allow more flexibility for applications
- Flange mounting with screw boss is molded into the body for ease of installation
- Design uses a staked coil L frame with drawn pole sleeves to eliminate loose or missing pole pieces
- Improved coil bobbin design reduces problems
- Slow closing operators reduce water hammer and extend valve life
- Spin-weld assembly minimizes problems caused by loose or missing screws
- Suitable for applications using liquids up to 160°F (71°C)
- Quiet operation
- Stainless steel inlet screens with 60 x 60 mesh
Specifications
- Body Material: Polypro
- Electrical Rating: 120V, 60 Hz, 5 Watts
- Flow Rate: 1.69 to 2.54 GPM
- Inlet Size: 3/4" 11.5 NHT
- Operating Pressure: 7.5 to 147 PSI
- Outlet: 3/8" ID Hose
