Description

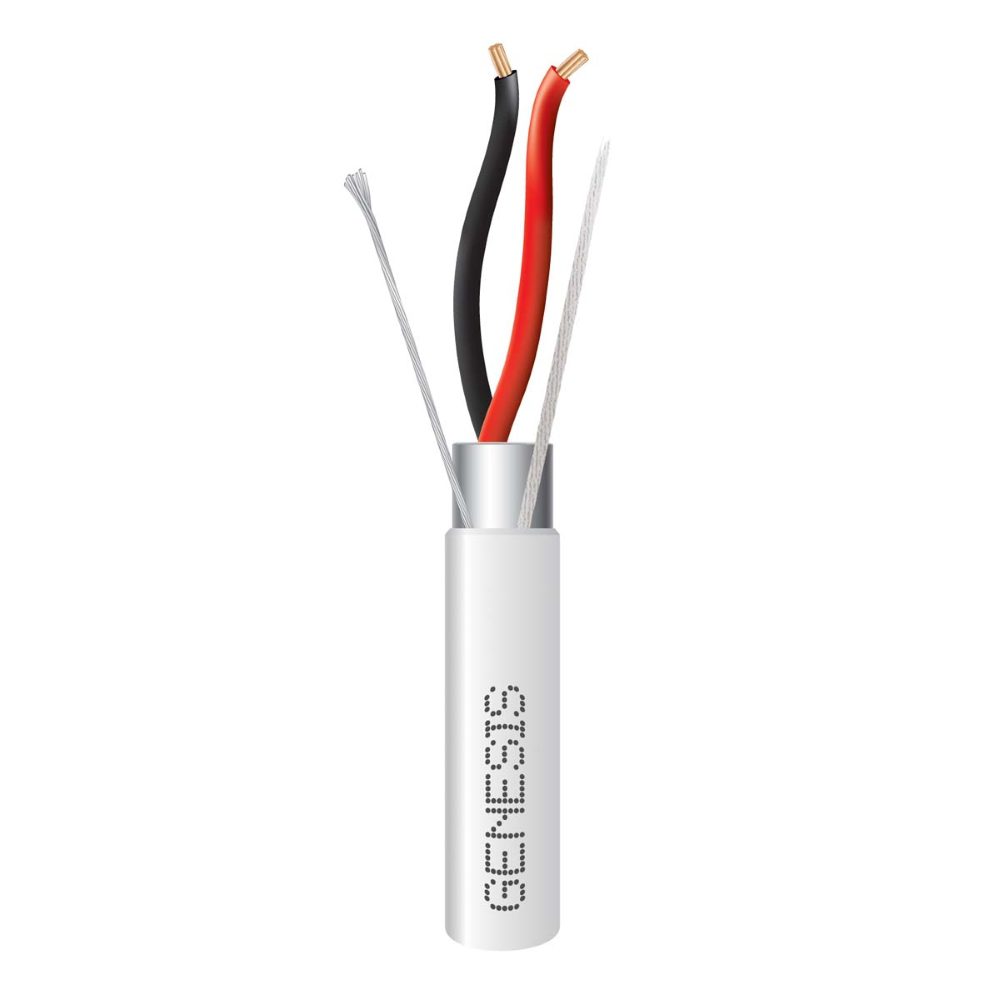

Plenum Rated Security & Control Cable
Part Number: 3226
18 AWG 2 Stranded Conductors Shielded
Ratings CMP, CL3P, FPLP, FT6
Approvals ETL Listed
Construction
Conductor 18 AWG 19 Strand Bare Copper
Conductor Count 2
Insulation Plenum PVC (0.007″ nom.)
Insulation Colors Black, Red
Lay Length 2.25″ nom.
Shielding Aluminum Foil/Mylar w/ 24 AWG Tinned-Copper Drain
Rip Cord Yes
Jacket Plenum PVC (0.015 ” nom.)
Overall Diameter 0.156″ nom.
Print Legend GENESIS P/N 3214 2C 18AWG SHIELDED 3038058 (ETL) CL3P OR FPLP FT6 75C (RoHS) W/O# XXXXXX-XXXXXXX XXXXFT A B C D E F 1 2 3 4 5 6 7 8 9
Properties
Operating Voltage 300 Volts max.
DC Resistance 6.66 Ohms/1000′ at 20°C
Capacitance 59.3 pF/ft. nom.
Impedance 31 Ohms nom.
Temperature -20°C to 75°C
Flame Rating NFPA 262 (Plenum); CSA C22.2 No. 2556 (FT6)
RoHS Compliant Yes
Country of Origin USA
