Jackson Systems
Shop Humidifiers

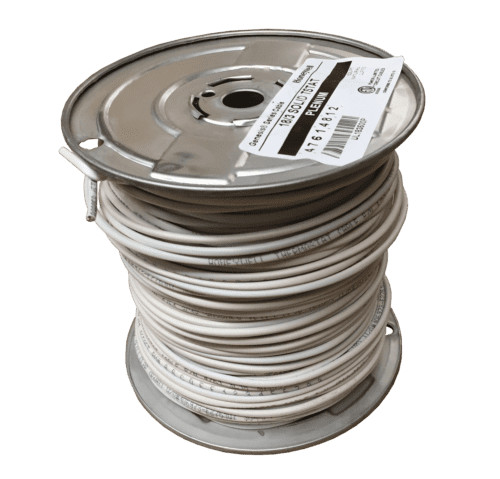

GenesisTWP-18/6 (47640312) Plenum-Rated Thermostat Wire in 250ft Roll

BRAND: Genesis SKU: TWP-18/6

$108.99

MSRP: $125.34
You save 15%

18 AWG 6C Solid Plenum Thermostat Cable, 250ft Reel

Free Shipping
Ships Tomorrow
Availability:

7 In Stock

Description

When it comes to installing a cable specifically engineered to handle the evolving demands and functionality of thermostats, plenum-rated thermostat wire delivers exactly what you need:

• First cable designed specifically for the power requirements of the circuit

• Ideal for both new (energy-efficient) and existing HVAC equipment

• Available in 2, 3, 4 and 6-conductor constructions

TWP-18/6 is 18 gauge solid, six conductor, plenum rated in 250' rolls.

Additional information

Gauge

18 AWG

Conductors

18 AWG Solid Bare Copper

Plenum Rated

Yes

Conductor Count

6

Outside Diameter

0.188" Nominal

Voltage

150 Volts Max

DC Resistance

6.52 Ohms/1000ft at 20?C

Capacitance

22.8 pF/ft. nom.

Impedance

67 Ohms nom.

Temperature

-20?C to 60?C

UPC 043908523165
