Description

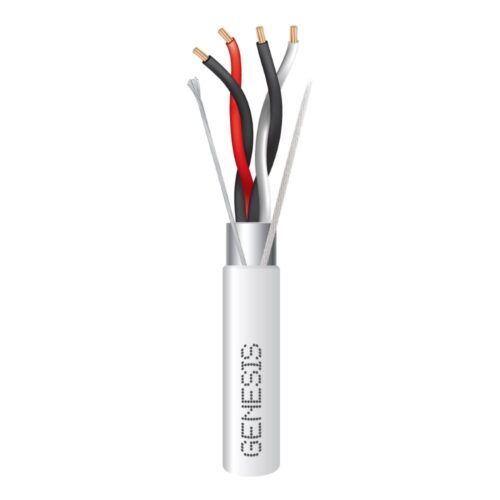

Plenum Rated Security & Control Cable
-
- Part Number: 3281
- 22 AWG 2 Stranded Pairs Overall Shielded
- Ratings CMP, CL3P, FPLP, FT6
- Approvals ETL Listed
- Construction
- Conductor 22 AWG 7 Strand Bare Copper
- Conductor Count 4 (2-pairs)
- Insulation Plenum PVC (0.007″ nom.)
- Insulation Colors Black/Red, Black/White
- Lay Length 1.50″ nom. (twist); 3.00″ nom. (cable)
- Shielding Aluminum Foil/Mylar w/ 24 AWG Tinned-Copper Drain
- Rip Cord Yes
- Jacket Plenum PVC (0.015 ” nom.)
- Overall Diameter 0.182″ nom.
Properties
-
-
- Operating Voltage 300 Volts max.
- DC Resistance 16.9 Ohms/1000′ at 20°C
- Capacitance 32.9 pF/ft. nom.
- Impedance 57 Ohms nom.
- Temperature -20°C to 75°C
- Flame Rating NFPA 262 (Plenum); CSA C22.2 No. 2556 (FT6)
- RoHS Compliant Yes
- Country of Origin USA
-
