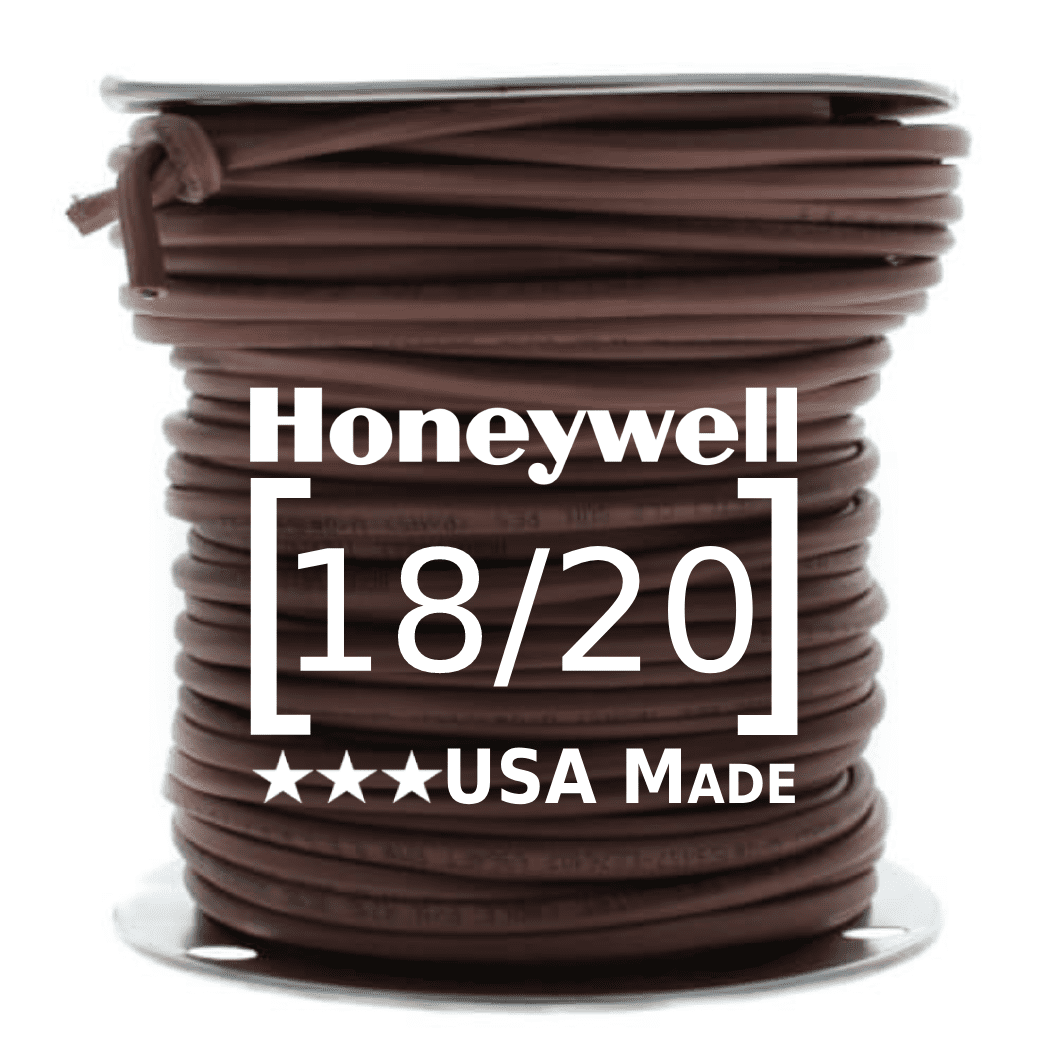

Honeywell TWH-18/20 18/20 Hybrid Thermostat Wire in 250ft Reel 67160307

BRAND: Honeywell Home SKU: TWH-18/20

$69.99

MSRP: $80.49
You save 15%

18/20 AWG 8C Solid Hybrid Thermostat Cable, 250ft Reel

Availability:

21 In Stock

Description

Honeywell Genesis 8 Conductor 18/20 Hybrid Thermostat Wire 250 FT Reel

Conductor 18 AWG & 20 AWG Solid Bare Copper

Conductor Count 1 x 18AWG; 7 x 20AWG

Insulation Polypropylene (0.006" nom.)

Insulation Colors 18AWG: Red; 20AWG: White, Green, Blue, Yellow, Brown, Orange, Black Lay Length 3.5" nom.

Shielding N/A

Rip Cord Yes (except Speed Bag put ups)

Jacket PVC (0.015 " nom.)

Overall Diameter: 0.180" nom.

Operating Voltage: 150 Volts max.

DC Resistance: 20 AWG: 10.3 Ohms/1000' at 20°C; 18 AWG: 6.5 Ohms/1000' at 20°C

Capacitance –

Impedance –

Temperature: -20°C to 60°C

Flame Rating UL: 1685 Vertical Tray

RoHS Compliant: Yes

Country of Origin: USA

Additional information

Gauge

,

Conductors

Conductor Count

Outside Diameter

Operating Voltage

DC Resistance

Temperature

UPC 886618197178
