Description

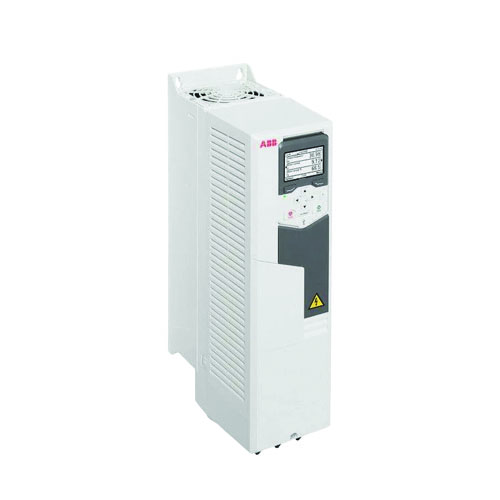

The ABB ACH580-01-011A-6 is a 575V, 6-pulse, NEMA 1 enclosed Variable Frequency Drive purpose-built for HVAC applications. Part of ABB’s ACH580 series, this drive delivers intelligent motor speed control to optimize energy consumption, extend equipment life, and ensure precise climate management in commercial and industrial HVAC systems.
Product Overview
The ACH580 series is ABB’s dedicated HVAC drive platform, engineered to meet the demanding requirements of fans, pumps, compressors, and air handling units. The NEMA 1 enclosure makes it suitable for clean indoor installations, while the 6-pulse input topology provides a cost-effective solution for standard power distribution environments.
Key Features
- Input Voltage: 575V AC, 3-phase
- Drive topology: 6-pulse input for standard power grid compatibility
- Enclosure rating: NEMA 1 (IP21) for indoor installations
- Purpose-built for HVAC applications including fans, pumps, and air handling units
- Built-in HVAC application macros for fast commissioning
- Integrated PID control for pressure, temperature, and flow regulation
- Energy optimizer function for maximizing motor efficiency at partial loads
- Real-time energy consumption monitoring and reporting
- Embedded Modbus RTU communication as standard
- Optional fieldbus connectivity (BACnet, LonWorks, PROFIBUS, and more)
- Built-in EMC filter for reduced electromagnetic interference
- Safe Torque Off (STO) safety function
- Keypad with plain-text display for intuitive setup and diagnostics
- Automatic motor adaptation (AMA) for optimized motor performance
HVAC Application Benefits
- Significant energy savings versus across-the-line motor starting
- Soft start and stop reduces mechanical stress on motors and driven equipment
- Eliminates water hammer in pumping systems
- Supports demand-controlled ventilation for improved indoor air quality
- Compatible with BAS/BMS integration via optional communication modules
Enclosure & Installation
- NEMA 1 (IP21) enclosure suitable for protected indoor environments
- Compact footprint for panel or wall mounting
- Top cable entry/exit for straightforward wiring
- UL listed and CE marked for North American and international compliance
Why Choose the ABB ACH580 Series?
ABB’s ACH580 drives are trusted by HVAC engineers and contractors worldwide for their reliability, ease of use, and comprehensive built-in HVAC functionality. With dedicated application macros, energy monitoring tools, and broad communication protocol support, the ACH580-01-011A-6 simplifies installation and delivers long-term operational savings in commercial HVAC environments.
