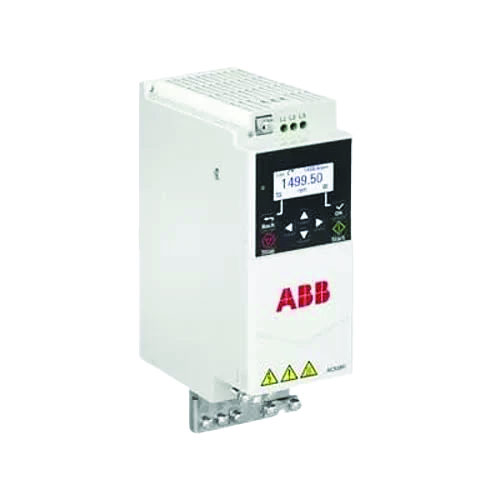

ABB ACS180-04S-05A6-4 Variable Frequency Drive Overview
The ABB ACS180-04S-05A6-4 is a 2HP (1.5 kW), 480V three-phase variable frequency drive engineered for demanding HVAC and light industrial motor control applications. Part of ABB’s ACS180 general-purpose drive series, this unit delivers reliable, energy-efficient speed control for fans, pumps, compressors, and conveyor motors in commercial and light commercial settings.
Key Specifications
- Model: ACS180-04S-05A6-4
- Output Power: 2HP (1.5 kW)
- Input Voltage: 380–480V AC, 3-Phase
- Output Current: 5.6A (nominal)
- Control Method: Scalar (V/Hz) and vector control modes
- Enclosure: IP20 (panel-mount)
- Built-in EMC filter for reduced electrical noise
- Integrated brake chopper for dynamic braking capability
HVAC & Application Features
- Pre-programmed HVAC application macros for fast commissioning
- PID control loop for pressure and temperature regulation
- Sleep/wake function to optimize energy savings in variable-demand systems
- Compatible with BACnet, Modbus RTU, and other building automation protocols via optional fieldbus modules
- Safe Torque Off (STO) function for safety compliance
- Soft start and soft stop to reduce mechanical stress on motors and drive components
Installation & Wiring
- Compact, panel-mount design for easy integration into control panels and equipment enclosures
- Removable keypad with parameter copy function for multi-unit installations
- Multiple analog and digital I/O for flexible system integration
- DIN rail or screw-mount compatible
Why Choose the ABB ACS180 Series
ABB’s ACS180 drives are designed to reduce energy consumption, extend motor life, and simplify installation in HVAC systems. The built-in EMC filter and pre-configured HVAC macros make the ACS180-04S-05A6-4 a plug-and-play solution for contractors and building automation professionals who need reliable motor speed control without complex setup.
