Description
Overview

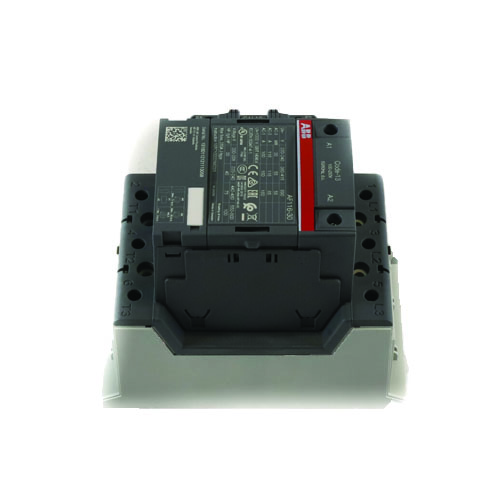

The ABB AF116-30-11-13 is a heavy-duty, 3-pole definite-purpose contactor engineered for reliable switching of high-current loads in commercial and industrial HVAC applications. Rated at 104 amps, this contactor is part of ABB’s AF-series lineup, which is widely recognized for its wide-range coil technology and robust construction.
Wide-Range Coil Technology
The AF116-30-11-13 features ABB’s signature wide-range coil, accepting control voltages from 100 to 250V AC/DC at 50/60 Hz. This eliminates the need to stock multiple coil voltage variants, simplifying inventory and reducing installation errors across diverse control circuit configurations.
Key Specifications
- SKU: AF116-30-11-13
- Brand: ABB
- Series: AF-Series
- Poles: 3-Pole (3P)
- Rated Current: 104 Amps
- Coil Voltage: 100–250V AC/DC, 50/60 Hz (wide-range)
- Auxiliary Contacts: 1 Normally Open (1NO) / 1 Normally Closed (1NC)
- Contact Configuration: 30-11 (3 main poles, 1NO + 1NC auxiliary)
Features & Benefits
- Wide-range coil accepts 100–250V AC or DC — one contactor covers multiple voltage applications
- Integrated 1NO/1NC auxiliary contacts for control circuit feedback, interlocking, and status indication
- Heavy-duty 104A rating suitable for large HVAC compressors, motors, and other high-current loads
- Compact, space-saving design for panel and enclosure installations
- Designed for high switching frequency and long mechanical and electrical service life
- Finger-safe terminal design for enhanced installer safety
- DIN rail and screw-mount compatible for flexible installation
Typical Applications
- Commercial HVAC compressor switching
- Air handling unit (AHU) motor control
- Chiller and rooftop unit control panels
- Industrial motor starter assemblies
- Building automation and electrical distribution panels
Why Choose ABB AF-Series Contactors?
ABB’s AF-series contactors are trusted by HVAC professionals and electrical contractors worldwide for their reliability, wide coil voltage acceptance, and ease of installation. The AF116-30-11-13 is an ideal solution wherever a robust, high-amperage 3-pole contactor with auxiliary contacts is required.
