Description

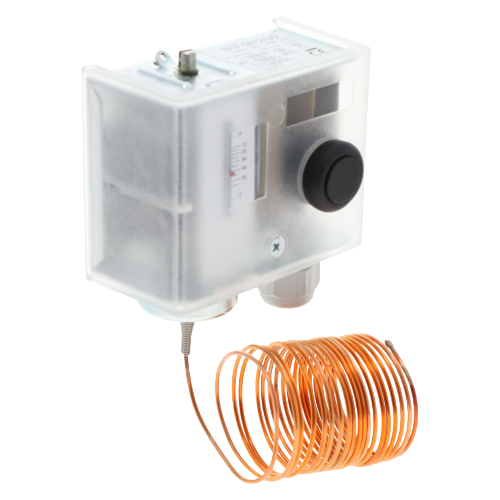

The ACI 106293 is a commercial-grade freeze protection thermostat (freeze stat) engineered to safeguard air handling units, coils, and ductwork from damaging low-temperature conditions. With a generous 10-foot sensing capillary, this unit samples air temperature across a wide cross-section of the duct or coil face, ensuring no cold spot goes undetected.
Key Features
- 10-foot capillary tube for broad, averaging temperature sensing across coil or duct cross-sections
- Manual reset (M/R) operation — requires deliberate operator intervention after a trip event, preventing automatic restart until the freeze condition is investigated and resolved
- Dual SPDT (2 × Single-Pole Double-Throw) switching action provides two independent circuit outputs for versatile control wiring
- Designed for freeze protection of heating and cooling coils, AHUs, and air distribution systems
- Rugged construction suitable for demanding commercial and industrial HVAC applications
How It Works
The freeze stat’s capillary is routed across the face of the coil or inside the duct. If any point along the capillary detects a temperature at or below the set point, the stat trips — shutting down fans, closing dampers, or activating heating circuits via its two SPDT outputs. The manual reset feature ensures the system cannot restart until a technician has assessed and cleared the freeze condition, protecting equipment and building occupants.
Typical Applications
- Air handling units (AHUs) and rooftop units
- Heating and cooling coil freeze protection
- Outdoor air intake damper control
- Commercial ventilation and makeup air systems
Product Specifications
- SKU: 106293
- Brand: ACI (Automation Components Inc)
- Capillary Length: 10 feet
- Reset Type: Manual Reset (M/R)
- Switch Configuration: 2 SPDT (Dual Single-Pole Double-Throw)
- Application: Freeze protection / low-limit temperature control
