Description

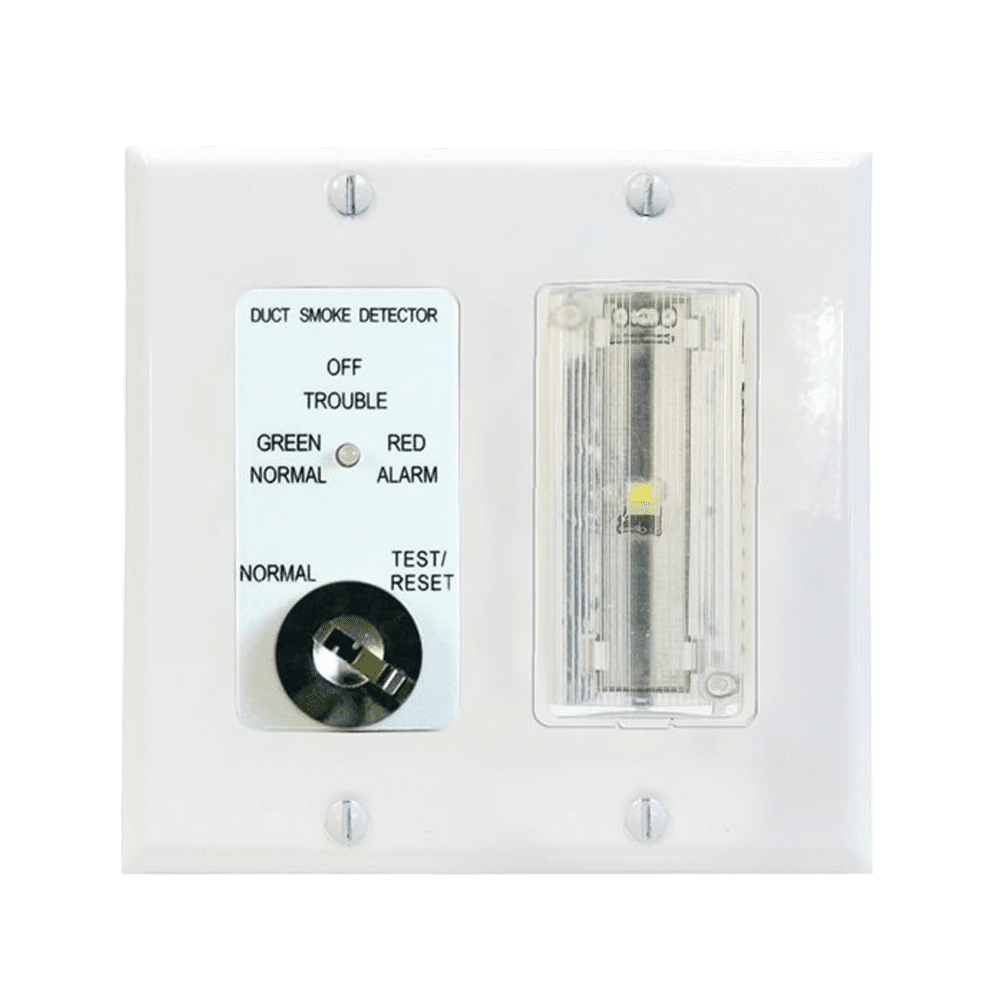

The MSR-50RKAV/W/C remote accessories are designed for use with Air Products and Controls duct smoke detectors to provide the range of functionality required by your local commercial Application. Key test station in a white double gang Decora style control assembly with enhanced sounder and strobe with a clear strobe lens.
Features:
- The MSR-50RK provides a key-operated detector test and reset function.
- Enhanced sounder / LED strobe assembly.
- Clear strobe lens
- Decora style cover plates (white).
- The MSR-50R Series indicator/control assemblies provide:
- Tri-color visual indication of detector Pilot, Trouble and Alarm conditions
- Lever-operated quick-connect “No-Tools” four-position terminal block
- Port for plugging in the optional strobe assembly
- For convenience, blue “SMOKE” and red “FIRE” strobe lens decals are included for both horizontal and vertical mounting.
Electrical:
- Status Indicator – Alarm Red
- Status Indicator – Fault Off
Environmental:
- Operating Temperature (Min) 0°C
- Operating Temperature (Max) 49°C
- Operating Temperature 0 to 49°C
Conformance:
- Standards UL 268
