Description

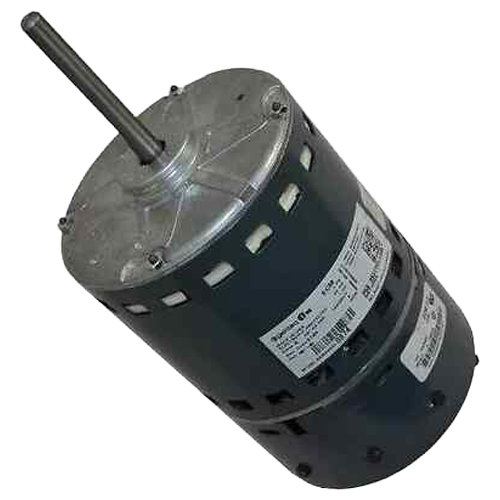

The Amana-Goodman 0231K00036A 1 HP ECM Blower Motor is a genuine OEM replacement designed for use in various Goodman, Amana, and Janitrol HVAC systems. This Electronically Commutated Motor (ECM) offers enhanced energy efficiency and precise control over airflow, contributing to improved system performance and reduced energy consumption. With a 1 horsepower rating and dual voltage capability (120/240V), it provides versatile application options.
Key Features
- Motor Type: Electronically Commutated Motor (ECM)
- Horsepower: 1 HP
- Voltage: 120/240V
- Phase: Single
- Rotation: Counterclockwise (CCW)
- Speed: 1800 RPM
- Duty: Continuous Running Duty (S1)
- Insulation Class: B
- Bearing Type: Ball
- Frame Size: 48
- Approvals: CSA Certified; CSA Listed; CUL Recognized
- Dimensions: 14″ x 14″ x 14″
