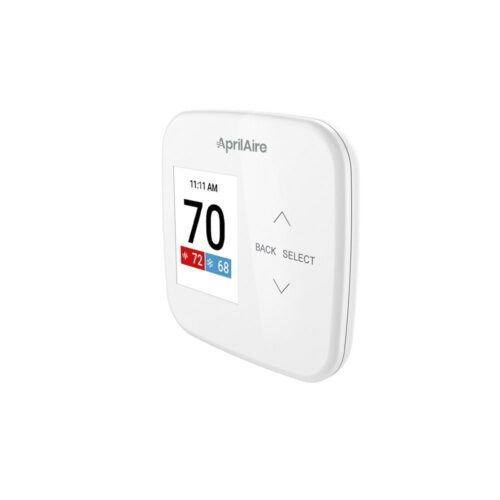

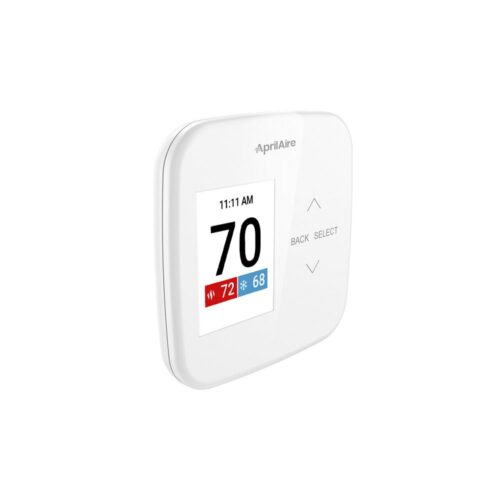

Aprilaire S86NMUPR Multi-Stage Programmable Thermostat with IAQ Relay

Description

Aprilaire S86NMUPR Universal, Capacitive touch, Multi-stage 2H/2C or 4H/2C Heat Pump, Programmable or Non-programmable w/ Programmable IAQ Relay.

Features:

• Color Graphical Display
• Real Language Setup
• Capacitive Touch Interface
• Programmable & Non-Programmable
• Dual Fuel Capable
• Air Filter and HVAC Service Reminders
• High & Low Balance Point with Outdoor Temperature Sensor
• Indoor air quality control (S86NMUPR only).
  • Humidification automatic or manual control.
  • Dehumidification.
  • Event-Based air cleaning.
  • Ventilation with temperature and humidity limits.

Environmental Specifications:

• Operating Temperature: 32 to 120F (0 to 48.9C)
• Operating Humidity: 5% to 90% Relative Humidity
• Electrical Operating Voltage: 24VAC (18-30VAC)
• Current – Maximum: 2.5A (total), 1.0A (single output)
• Thermal: Display Range Room Temperature: 32 to 99F (0 to 40C)
• Outdoor Temperature: -40 to 130F (-40 to 55C)
• Setpoint Range: Heat: 40 to 90F (4 to 32C)
• Cool: 50 to 99F (10 to 37C)

Wiring Terminals:

RH RC W Y G C O/B L W2 Y2 T1 T2 I2 I1

Easy to Program:

• Best in class schedule setup is more intuitive for homeowners leading to fewer call backs
• Individual days, weekdays, weekends, or 7-day programmability
• Convenient Heat Blast® option to raise room temperature 3 to 5F
• Programmable fan control with fan circulation mode
• Progressive recovery ensures proper temperature at the start of a program event

Add On Accessories:

• 8052 Outdoor Temperature Sensor
• 8086 Wall Cover
• 8022 Add-a-Wire Adaptor

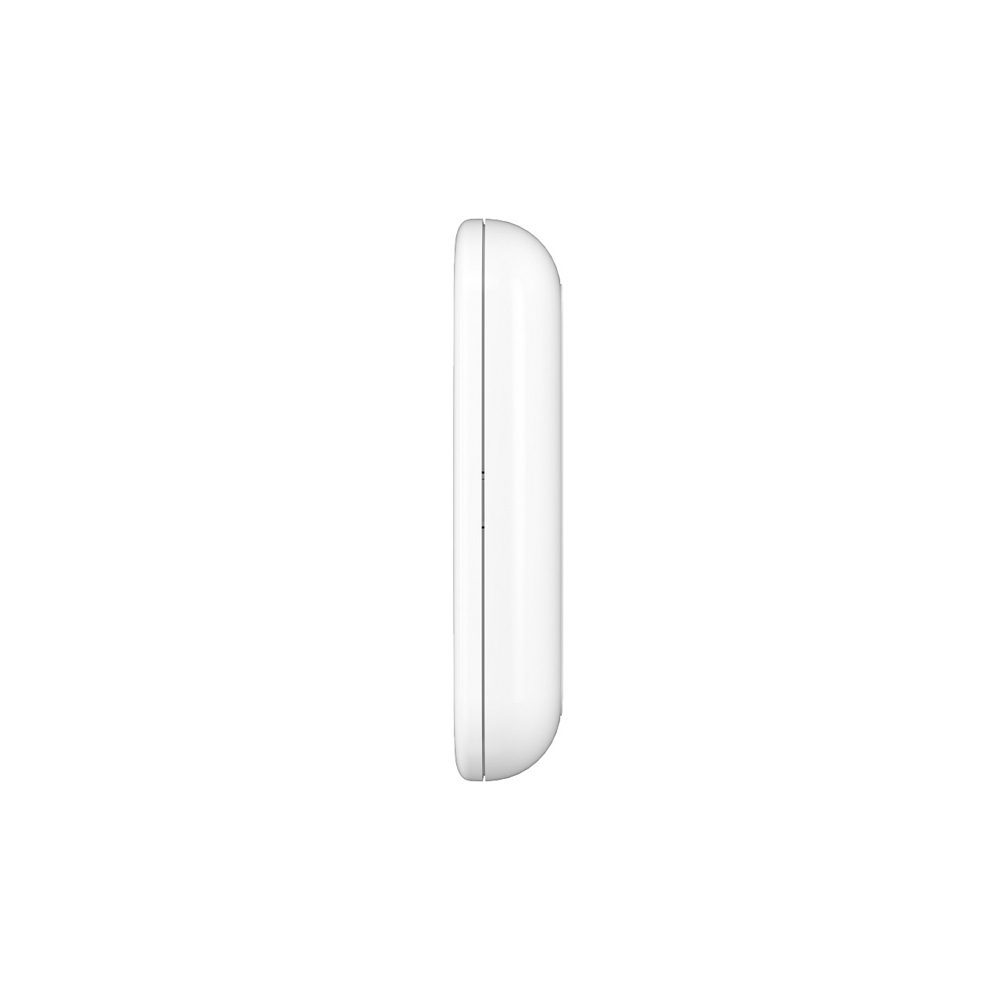

Product Dimensions:

4.38" x 4.38" x 0.80"
