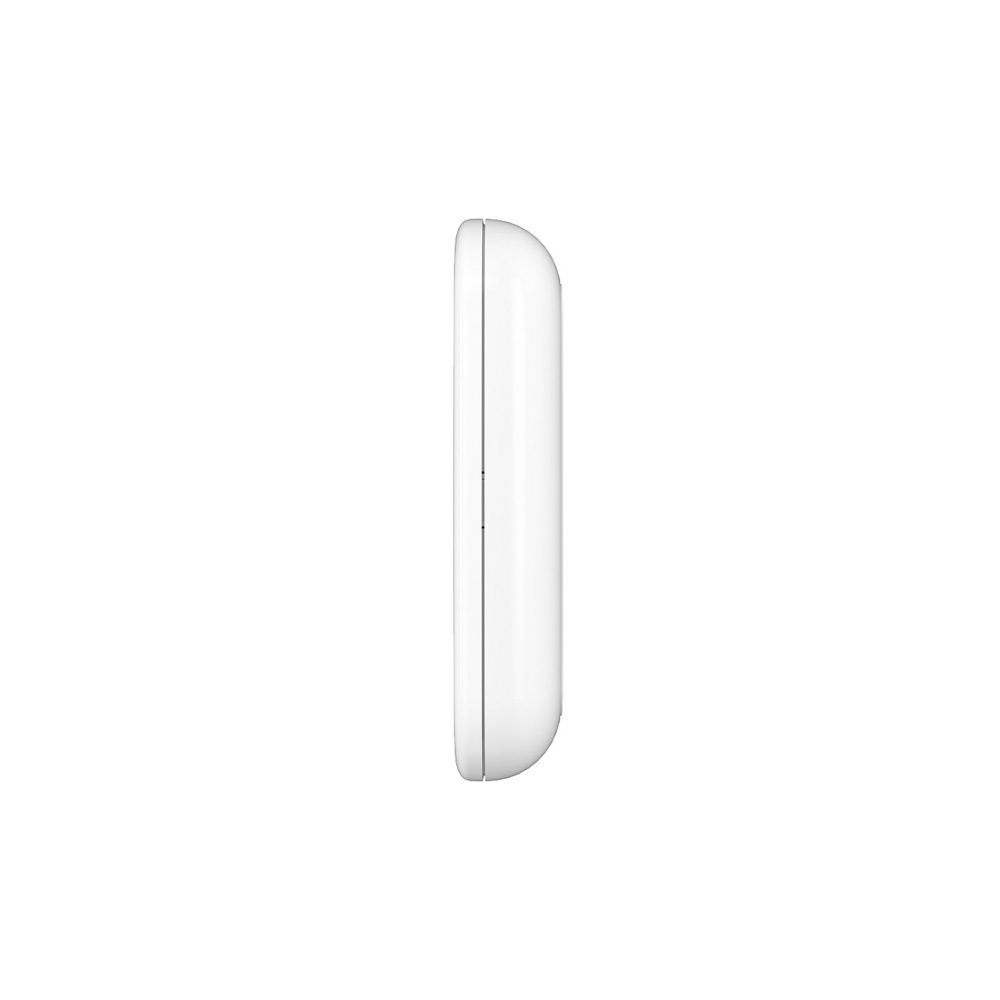

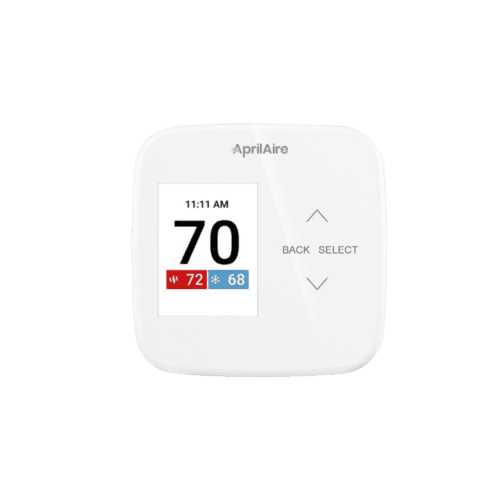

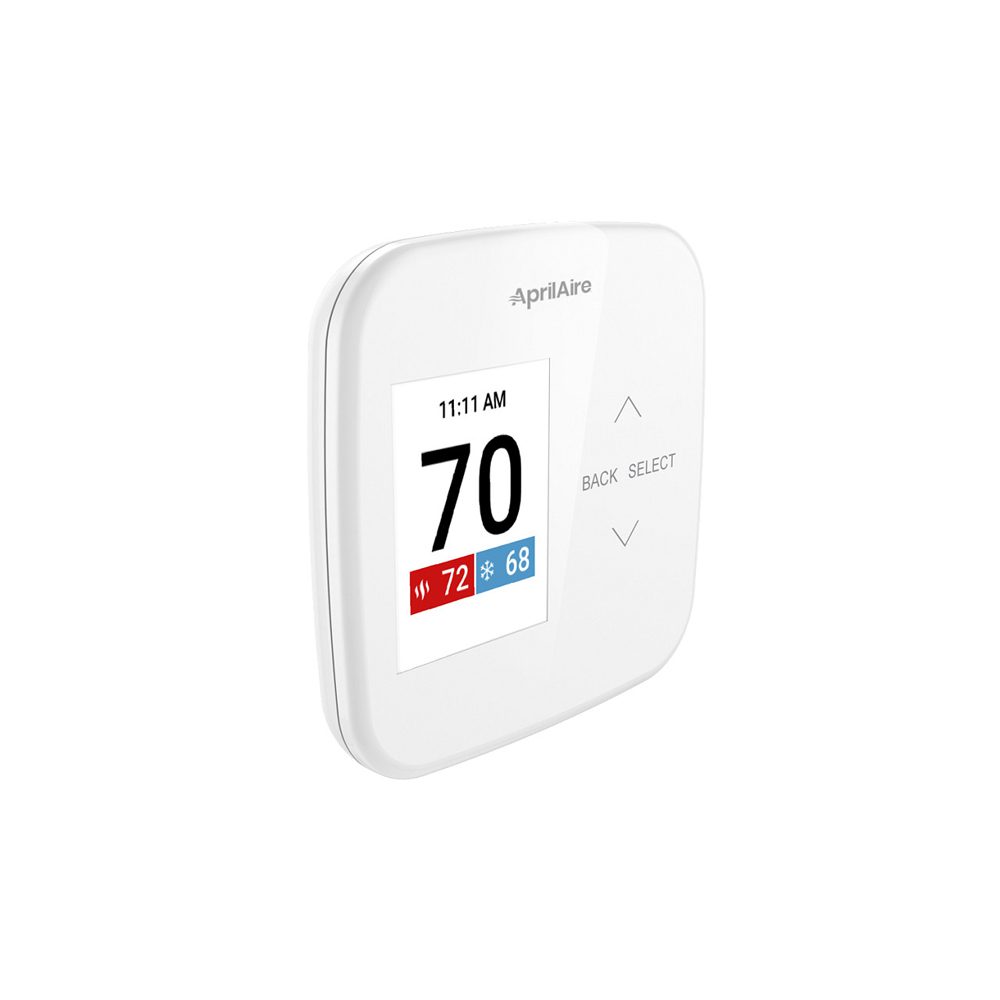

Aprilaire S86WMUPR Multi-Stage Wi-Fi Thermostat with IAQ Relay

BRAND: Aprilaire SKU: S86WMUPR

(1 customer review)


MSRP: $239.90
You save 28%

Multi-stage Wi-Fi Thermostat with IAQ Relay, 2H/2C or 4H/2C

Free Shipping
Ships Today

7 In Stock


The AprilAire S86WMUPR Wi-Fi Programmable Thermostat takes Healthy Air control to a whole new level. Monitoring and controlling your Indoor Air Quality is a breeze with features like automatic humidifier and dehumidifier control, automatic air cleaning, and temperature control. With the AprilAire Healthy Air App, you can achieve control from the palm of your hand, no matter where you are.

  • Color Graphical Display
  • Real Language Setup
  • Capacitive Touch Interface
  • Programmable & Non-Programmable
  • Dual Fuel Capable
  • Air Filter & HVAC Service Reminders
  • High & Low Balance Point With Outdoor Temperature Sensor
Environmental Specifications:
  • Operating Temperature: 32 to 120F (0 to 48.9C)
  • Operating Humidity: 5% to 90% Relative Humidity
  • Electrical Operating Voltage: 24VAC (18-30VAC)
  • Current – Maximum: 2.5A (total), 1.0A (single output)
  • Thermal: Display Range Room Temperature: 32 to 99F (0 to 40C)
  • Outdoor Temperature: -40 to 130F (-40 to 55C)
  • Setpoint Range: Heat: 40 to 90F (4 to 32C)
  • Cool: 50 to 99F (10 to 37C)
Wiring Terminals:

RH RC W Y G C O/B L W2 Y2 T1 T2 I2 I1

Easy to Program:
  • Best in class schedule setup is more intuitive for homeowners leading to fewer call backs
  • Individual days, weekdays, weekends, or 7-day programmability
  • Convenient Heat Blast® option to raise room temperature 3 to 5F
  • Programmable fan control with fan circulation mode
  • Progressive recovery ensures proper temperature at the start of a program event
Add On Accessories:
  • Z10IDT Wireless Indoor Temperature and Humidity Sensor
  • Z10ODT Wireless Outdoor Temperature and Humidity Sensor
  • 8052 Outdoor Temperature Sensor
  • 8086 Wall Cover
  • 8022 Add-a-Wire Adaptor
Product Dimensions:
  • 4.38" x 4.38" x 0.80"

Additional information


Connected Product

Display Type


Power Type




Temperature Range

Terminal Designations





UPC 686720007699
Imprinting Available Yes
