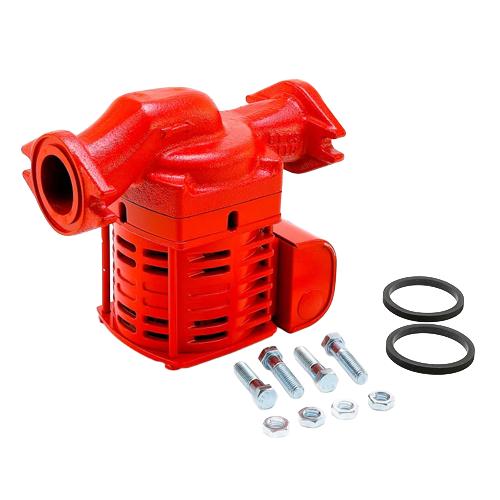

The Armstrong Fluid Technology ARMflo E13.2 (Model 182202-655) is a professional-grade cast iron circulator engineered for demanding commercial and industrial hydronic applications. Whether you’re managing large-scale radiant panel heating, geothermal systems, or building HVAC loops, this circulator delivers the dependable flow and pressure performance your system requires.
Built with a robust cast iron body, the E13.2 resists wear and corrosion in high-temperature environments, ensuring a long service life even under continuous operation. The 1/6 HP, 120V single-phase motor provides consistent, energy-efficient power delivery with minimal maintenance requirements.
Key Performance Features:
- Flow Rate: Up to 54 GPM for effective system-wide fluid distribution
- Maximum Head: 85 feet for extended system reach and coverage
- Maximum Operating Temperature: 250°F — suitable for high-temp hydronic systems
- Maximum Operating Pressure: 150 PSI for pressurized closed-loop applications
- Self-Priming Design: Simplifies installation and reduces commissioning time
Technical Specifications:
- Motor Voltage: 120V
- Motor Phase: Single Phase
- Motor Horsepower: 1/6 HP
- Pump Construction: Cast Iron
- Flange Connection Size: 1 inch, 1-1/4 inch, 1-1/2 inch
- Maximum Operating Pressure: 150 PSI
- Maximum Temperature: 250°F
- Weight: 15.69 lbs
Ideal for contractors and mechanical engineers seeking a proven, versatile circulator that installs quickly and performs reliably across a wide range of commercial hydronic and fluid-handling systems.
