Description

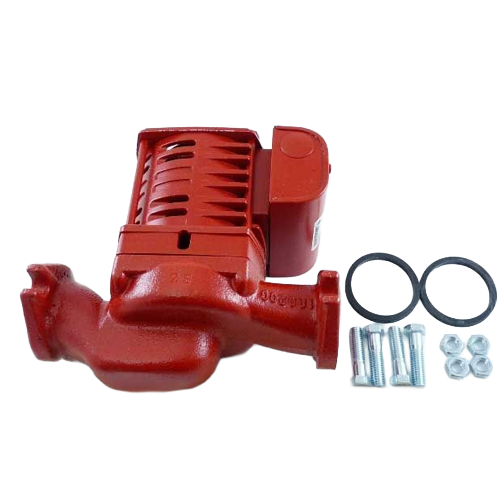

The Armstrong Fluid Technology E11.2 Series Circulator Pump (Model 182202-651) is engineered for dependable, long-term performance in a wide range of hydronic and fluid circulation systems. Built around a rugged cast iron body and equipped with a silicon carbide mechanical seal for exceptional wear resistance, this pump is designed to handle the demands of both residential and light commercial environments without compromise. Whether you’re supporting a hydronic heating system, a geothermal loop, or a snow melt application, the E11.2 delivers consistent, efficient performance you can count on season after season. The 1/6 HP, 120V single-phase motor is optimized for energy efficiency, keeping operating costs low while maintaining reliable output. Flexible connection sizing — available in 1 inch, 1-1/4 inch, and 1-1/2 inch — makes installation straightforward across a variety of system configurations. With a maximum operating pressure of 150 PSI and a maximum operating temperature of 230°F, this pump is built to perform reliably under real-world conditions.
Key Specifications:
- Motor Power: 1/6 HP
- Voltage: 120V, Single-Phase
- Max Flow Rate: 140 GPM
- Max Head: 60 Feet
- Connection Sizes: 1″, 1-1/4″, 1-1/2″
- Max Operating Pressure: 150 PSI
- Max Operating Temperature: 230°F
- Body Material: Cast Iron
- Seal Type: Silicon Carbide Mechanical Seal
