Description

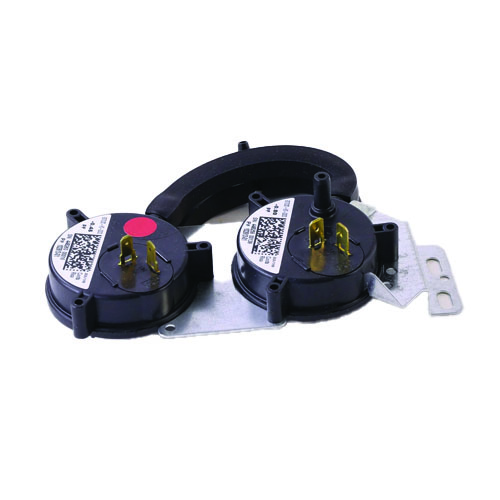

The Armstrong Furnace R102613-01 is an OEM two-stage pressure switch engineered as a direct replacement for compatible Armstrong Furnace systems. Designed to monitor and verify proper draft inducer operation, this pressure switch plays a critical safety role by preventing furnace ignition unless the correct negative pressure levels are confirmed within the flue and combustion air system.
How It Works
This dual-function pressure switch monitors two distinct pressure thresholds — .45″ W.C. and .80″ W.C. — corresponding to the two stages of furnace operation. On a call for heat, the switch confirms that the draft inducer has established adequate airflow before allowing the ignition sequence to proceed. If pressure falls outside the acceptable range at either stage, the switch opens the control circuit and locks out the furnace, protecting against unsafe combustion conditions.
Key Features
- OEM Armstrong Furnace replacement pressure switch
- Two-stage design with dual set points: .45″ W.C. and .80″ W.C.
- Monitors draft inducer operation for safe furnace ignition
- Opens control circuit on pressure fault to prevent unsafe operation
- Direct drop-in replacement for compatible Armstrong Furnace models
- Built for long-term reliability in residential and light commercial applications
Application
This pressure switch is intended for use in Armstrong Furnace equipment requiring a two-stage pressure switch with .45″/.80″ W.C. set points. Always verify compatibility with your specific furnace model number before installation. Consult the equipment service manual for wiring diagrams and proper installation procedures.
Specifications
- SKU: R102613-01
- Brand: Armstrong Furnace
- Type: Two-Stage Pressure Switch
- Stage 1 Set Point: .45″ W.C.
- Stage 2 Set Point: .80″ W.C.
- Application: Gas furnace draft inducer safety circuit
