Description

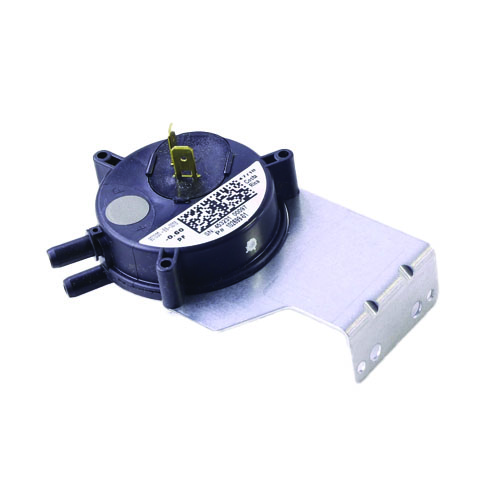

The Armstrong Furnace R102699-01 is an OEM replacement pressure switch engineered specifically for compatible Armstrong Furnace heating systems. Set at a precise 0.60″ water column (w.c.) setpoint, this pressure switch monitors the negative pressure generated by the inducer motor to verify safe combustion venting conditions before allowing the furnace to proceed through its ignition sequence.
How It Works
The pressure switch is a critical safety component in modern induced-draft and condensing furnaces. It senses the differential pressure created by the draft inducer blower. If the inducer fails to establish the correct airflow — due to a blocked flue, failed motor, or other venting issue — the pressure switch remains open, preventing ignition and protecting against unsafe operation.
Key Features
- OEM replacement part for Armstrong Furnace systems
- Calibrated setpoint: 0.60″ water column (w.c.)
- Designed to monitor inducer draft pressure for safe furnace operation
- Helps prevent ignition under unsafe venting conditions
- Direct-fit replacement for simplified installation
- SKU: R102699-01
Application
This pressure switch is intended for use in Armstrong Furnace equipment requiring a 0.60″ w.c. pressure switch. Always verify compatibility with your specific furnace model before installation. Consult your equipment’s service manual or contact a qualified HVAC technician to confirm the correct replacement part.
Installation Notes
- Intended for trained HVAC professionals
- Disconnect power before servicing
- Inspect inducer hose and ports for blockages during replacement
- Verify setpoint matches original equipment specification
