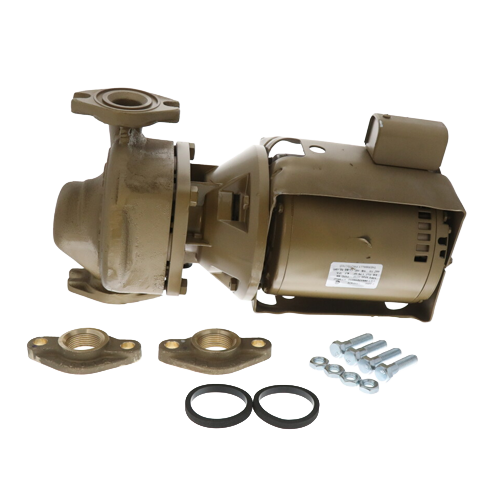

Armstrong H-41 116475-132 Bronze In-Line Circulator Pump, 1/6 HP, 115 VAC

Description

The Armstrong H-41 Bronze In-Line Circulator Pump is a trusted choice for HVAC professionals handling hydronic heating, cooling, and domestic water systems. Built with a lead-free bronze construction and NSF 372 certification, this pump delivers reliable, long-lasting performance in both residential and commercial applications. Its modular design simplifies maintenance, while premium internal components ensure durability under demanding conditions.

Product Highlights

• Lead-free bronze construction — NSF 372 certified for safe potable water applications
• Resilient mounted motor reduces vibration and extends service life
• Stainless steel shaft for corrosion resistance and long-term reliability
• Sintered silicon carbide seal face for superior wear and leak resistance
• Modular design allows for fast, straightforward maintenance and servicing

Technical Specifications

• Connection Size: 1 in NPT
• Dimensions: 15-1/4 in W x 13-1/4 in H
• Flow Rate: 22 GPM
• Frequency: 60 Hz
• Horsepower: 1/6 HP
• Material: Bronze
• Maximum Head: 17-1/2 ft
• Mounting: Resilient
• Phase: 1-Phase
• Pressure Rating: 175 PSIG
• Speed: 1800 RPM
• Temperature Rating: 225°F
• Type: In-Line
• Voltage: 115 VAC
• Certifications: NSF 372
