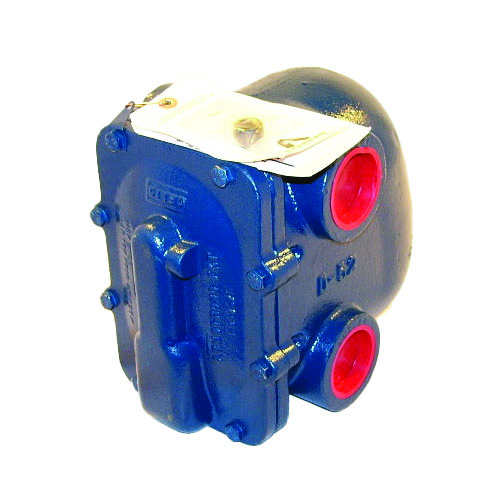

Armstrong International 125A8 Series A Float & Thermostatic Steam Trap
The Armstrong International 125A8 is a Series A Cast Iron Float & Thermostatic (F&T) Steam Trap engineered for reliable, continuous condensate discharge in commercial and industrial steam systems. Featuring a standard 2″ NPT connection and a maximum working pressure of 125 PSI, this trap is built to handle demanding steam distribution and process heating applications with long-lasting dependability.
Product Overview
Float & Thermostatic steam traps combine the continuous modulating action of a float valve with a thermostatic air vent, making them ideal for applications where both condensate and non-condensable gases must be efficiently removed. The Armstrong 125A8 delivers immediate, continuous condensate drainage while the integrated thermostatic air vent purges air and CO₂ at startup and during operation — protecting system efficiency and preventing water hammer.
Key Features
- Series A Cast Iron body construction for durability in steam service
- 2″ NPT standard connection for straightforward installation
- 125 PSI maximum working pressure rating
- 5/16″ orifice for optimized condensate flow capacity
- Integrated thermostatic air vent for automatic purging of air and non-condensable gases
- Float-operated valve provides continuous, modulating condensate discharge
- Suitable for commercial and industrial steam heating and process applications
Specifications
- SKU: 125A8
- Brand: Armstrong International
- Series: Series A
- Body Material: Cast Iron
- Connection Type: Standard NPT
- Connection Size: 2″ NPT
- Maximum Working Pressure: 125 PSI
- Orifice Size: 5/16″
- Trap Type: Float & Thermostatic (F&T)
- Air Vent: Thermostatic
Applications
- Steam unit heaters and heat exchangers
- Steam coils and air handling units
- Process steam heating equipment
- Steam distribution mains and drip legs
- Commercial and industrial HVAC steam systems
