Description

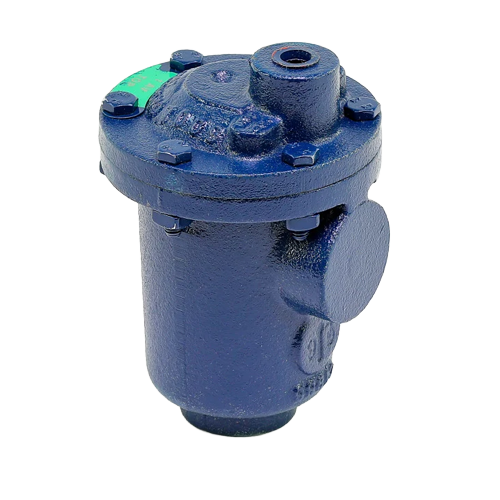

The Armstrong International C3510-2 is a Series 1AV Free Floating Lever Air and Gas Vent engineered for reliable automatic air and gas venting in steam and hydronic systems. Constructed with a durable cast iron body, this vent is built to withstand the demands of commercial and industrial HVAC and process piping applications.
Key Features
- Series 1AV free floating lever design for automatic air and gas venting
- Cast iron body construction for long-lasting durability in demanding environments
- 3/4″ NPT inlet connection for straightforward in-line installation
- 1/4″ NPT outlet connection for easy discharge piping
- Maximum working pressure of 146 PSI
- 1/8″ orifice for controlled, efficient venting
Specifications
- SKU: C3510-2
- Brand: Armstrong International
- Series: 1AV
- Body Material: Cast Iron
- Inlet Connection: 3/4″ NPT
- Outlet Connection: 1/4″ NPT
- Maximum Working Pressure: 146 PSI
- Orifice Size: 1/8″
- Vent Type: Free Floating Lever Air and Gas Vent
Applications
- Steam distribution and process piping systems
- Hydronic heating systems
- Air and non-condensable gas removal from pipelines
- Commercial and industrial HVAC installations
The free floating lever mechanism allows the vent to open automatically when air or gas is present and close tightly when liquid fills the chamber, preventing system inefficiencies caused by trapped air or gas pockets. This Armstrong International Series 1AV vent is a trusted solution for maintaining peak system performance and energy efficiency.
