Description

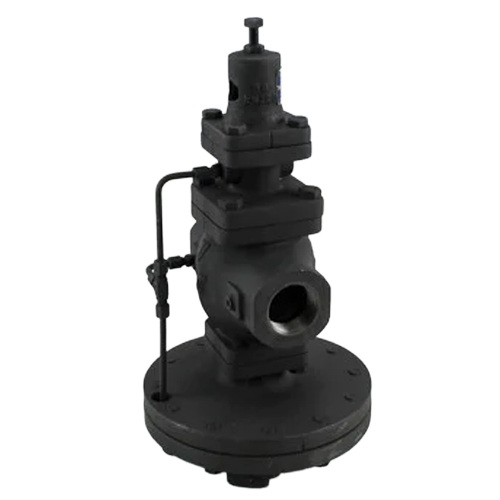

The Armstrong International GP-2000-1.5-3/21 is a heavy-duty, externally piloted pressure reducing valve engineered for demanding steam system applications. Featuring a rugged ductile iron body and a 1-1/2″ NPT connection, this valve is built to deliver precise, reliable downstream pressure control in commercial and industrial steam distribution systems.
Key Features
- 1-1/2″ NPT inlet and outlet connections for straightforward pipe integration
- 300 PSI maximum inlet pressure rating for high-pressure steam service
- Adjustable outlet pressure range of 3–21 PSI (Yellow Spring) for flexible system tuning
- Externally piloted design provides accurate, stable downstream pressure regulation
- Ductile iron body construction offers superior strength and long service life
- Designed specifically for use with steam media
Specifications
- SKU: GP-2000-1.5-3/21
- Brand: Armstrong International
- Connection Size: 1-1/2″ NPT
- Maximum Inlet Pressure: 300 PSI
- Outlet Pressure Range: 3–21 PSI (Yellow Spring)
- Body Material: Ductile Iron
- Pilot Type: Externally Piloted
- Media: Steam
Applications
- Commercial and industrial steam distribution systems
- Steam pressure let-down stations
- Process heating and steam supply control
- Boiler room and mechanical room steam piping
The GP-2000 series externally piloted design separates the sensing and control functions, allowing the pilot to sense downstream pressure independently and modulate the main valve accordingly. This results in tighter pressure control and more consistent performance compared to direct-acting designs — making it an ideal choice for systems where precise steam pressure regulation is critical.
