Description
Reliable Cooling Power for Commercial Air Conditioning

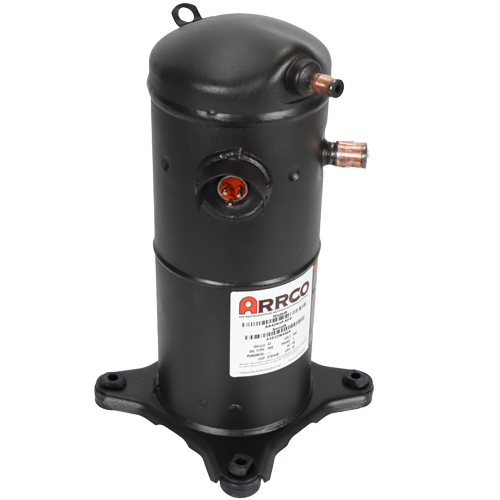

The ARRCO AA42KP-HFD is a high-performance scroll compressor engineered for demanding commercial air conditioning applications. Delivering 42,000 BTU/h of cooling capacity, this unit runs on R410A refrigerant with POE oil for efficient, environmentally responsible operation. Its compact footprint and straightforward suction and discharge line connections make installation fast and flexible across a wide range of system configurations.
Product Highlights
- 42,000 BTU/h (3.5 Ton) cooling capacity for robust air conditioning performance
- Operates on R410A refrigerant with POE oil for efficient, low-GWP cooling
- 460V, 3-phase, 60Hz power supply — ideal for commercial electrical systems
- Suction and discharge line connections for straightforward system integration
- Compact design simplifies installation in space-constrained applications
Technical Specifications
- Application: Air Conditioning
- Cooling Capacity: 42,000 BTU/h
- Refrigerant: R410A
- Oil Type: POE
- Voltage: 460V
- Phase: 3-Phase
- Frequency: 60 Hz
- Suction Temperature: 101°F
- Discharge Temperature: 50°F
- Weight: 67 lbs
- Dimensions (L x W x H): 9.56 in x 9.56 in x 16.94 in
Product Information
- Brand: ARRCO
- MPN: AA42KP-HFD
