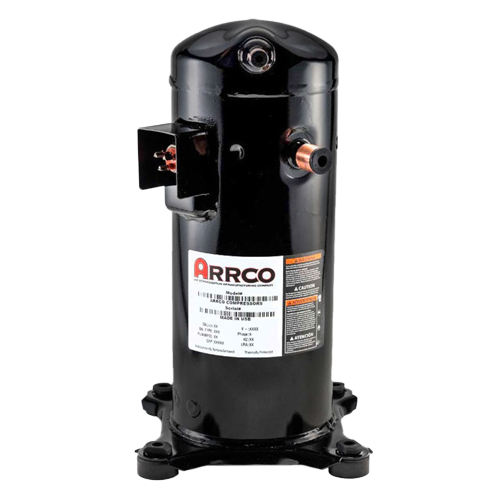

Arrco AA51KP-BFV Scroll Compressor 5 Ton R-410A Refrigerant | AA51KP-BFV

Description

The Arrco AA51KP-BFV is a heavy-duty 5-ton scroll compressor engineered for R-410A refrigerant systems. Delivering up to 66,800 BTU/hr of cooling capacity, this compressor is built to meet the demands of commercial and residential HVAC applications with consistent, efficient performance across a wide range of operating conditions.

Performance Specifications

• Discharge / Suction Temperature (°F): 50/100 – 45/130
• Return Gas / Liquid Temperature (°F): 70/85 – 65/115
• BTU/hr Capacity: 66,800 – 51,000
• Power Consumption: 3,140 – 4,690 Watts
• Current Draw: 14.45 – 21.2 Amps

Dimensions & Weight

• Mounting Length/Width: 7.5 in
• Mounting Height: 17.17 in
• Overall Length/Width: 9.56 in
• Overall Height: 16.94 in
• Net Weight: 82 lbs

Electrical Specifications

• Locked Rotor Amps (LRA): 134 A
• Maximum Continuous Current (MCC): 39 A
• Maximum Operating Current: 34 A
• Run Load Amps (Contactor): 24.3 A
• Run Load Amps (Breaker & Wire): 21.8 A
• Run Capacitor (MFD): See Product Label
• Run Capacitor Voltage: 370/440 V
• Start Capacitor (MFD): 88
• Start Capacitor Voltage: 330 V

Additional Specifications

• Oil Charge: 56
• Oil Recharge: 38
• Discharge Connection: 1/2″ Stub
• Suction Connection: 7/8″ Stub
