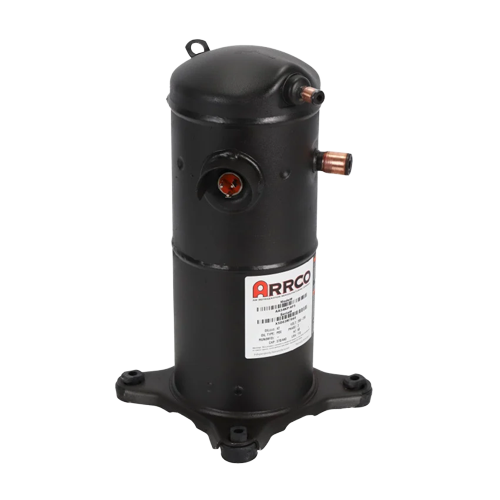

ARRCO AA54KP-HF5 5-Ton R-410A Remanufactured Scroll Compressor 200/230V 3-Phase

Description

The ARRCO AA54KP-HF5 is a remanufactured 5-ton scroll compressor engineered for dependable, high-efficiency performance in R-410A HVAC systems. Built to meet demanding residential and light commercial applications, this 200/230V 3-phase unit delivers consistent cooling capacity and is rigorously tested to restore like-new operating standards — offering a cost-effective alternative to new OEM replacement.

Performance Specifications

• Cooling Capacity: 54,300 – 73,600 BTU/hr
• Power Consumption: 3,400 – 5,070 Watts
• Operating Current: 10.45 – 14.4 Amps
• Discharge / Suction Temperature Range: 45°F–130°F / 50°F–100°F
• Return Gas / Liquid Temperature (°F): 65°–115° / 70°–85°

Dimensions & Weight

• Mounting Length/Width: 7.5 in
• Mounting Height: 17.17 in
• Overall Length/Width: 9.56 in
• Overall Height: 16.94 in
• Net Weight: 71.6 lbs

Electrical Specifications

• Voltage / Phase: 200/230V / 3-Phase
• Locked Rotor Amps (LRA): 110 A
• Maximum Continuous Current (MCC): 24.4 A
• Maximum Operating Current: 20 A
• Run Load Amps (Contactor): 14.3 A
• Run Load Amps (Breaker & Wire): 12.8 A
• Run Capacitor: Not Required
• Start Capacitor: Not Required

Additional Specifications

• Refrigerant: R-410A
• Oil Charge: 42 oz
• Oil Recharge: 38 oz
• Discharge Connection: 1/2 in Stub
• Suction Connection: 7/8 in Stub
