Description

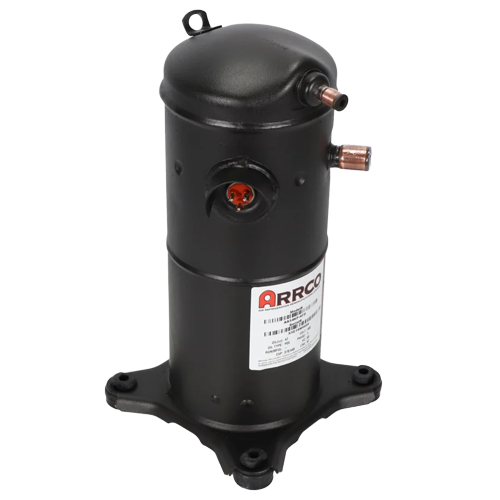

The Arrco AA54KP-HFD is a 5-ton scroll compressor engineered for dependable performance in commercial and residential HVAC systems. Designed for 460V/3-phase operation and compatible with R-410A refrigerant, this compressor delivers consistent cooling capacity and energy-efficient operation — making it an ideal drop-in replacement for demanding applications.
Performance Specifications
- BTU/hr Output: 73,800 (standard) / 54,300 (alternate conditions)
- Wattage: 3,400W / 5,070W
- Current/Amps: 4.85A / 7.15A
- Discharge/Suction Temperature (°F): 50°/100° | 45°/130°
- Return Gas / Liquid Temperature (°F): 70°/85° | 65°/115°
Electrical Specifications
- Locked Rotor Amps (LRA): 52A
- Maximum Continuous Current (MCC): 12.1A
- Maximum Operating Current: 10.3A
- Run Load Amps – Contactor: 7.4A
- Run Load Amps – Breaker & Wire: 6.6A
- Run Capacitor: Not required (0 MFD)
- Start Capacitor: Not required (0 MFD)
Dimensions & Weight
- Mounting Length/Width: 7.5 in
- Mounting Height: 17.17 in
- Overall Length/Width: 9.56 in
- Overall Height: 16.94 in
- Net Weight: 71.4 lbs
Connection & Oil Information
- Discharge Connection: 1/2″ Stub
- Suction Connection: 7/8″ Stub
- Oil Charge: 42 oz
- Oil Recharge: 38 oz
