Description

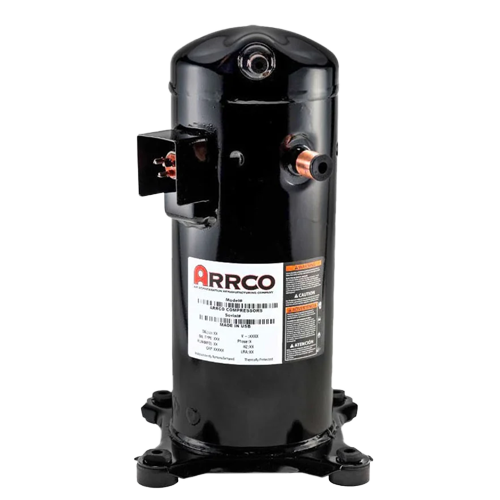

The Arrco AR24KP-BFV is a high-efficiency single-phase scroll compressor delivering up to 28,400 BTU/hr of cooling capacity. Engineered for dependable HVAC system performance, this compressor features a compact yet durable design with stub-type discharge and suction connections, making installation straightforward for residential and light commercial applications.
Performance Specifications
- BTU Output: 28,400 – 23,400 BTU/hr
- Discharge / Suction Temperature Range: 45°F–100°F / 45°F–130°F
- Refrigerant / Liquid Temperature (°F): 65–85 / 65–115
- Power Consumption: 1,500 – 2,260 Watts
- Operating Current: 6.9 – 10.2 Amps
Dimensions & Weight
- Mounting Length/Width: 7.5 in
- Mounting Height: 16.08 in
- Overall Length/Width: 9.5 in
- Overall Height: 15.86 in
- Net Weight: 50.1 lbs
Electrical Specifications
- Locked Rotor Amps (LRA): 61 A
- Maximum Continuous Current (MCC): 19 A
- Maximum Operating Current: 13.9 A
- Run Load Amps – Contactor: 13.6 A
- Run Load Amps – Breaker & Wire: 12.2 A
- Run Capacitor: See Product Label (370/440V)
- Start Capacitor: Not Required
Additional Specifications
- Oil Charge: 25 oz
- Oil Recharge: 19 oz
- Discharge Connection: 1/2″ Stub
- Suction Connection: 3/4″ Stub
