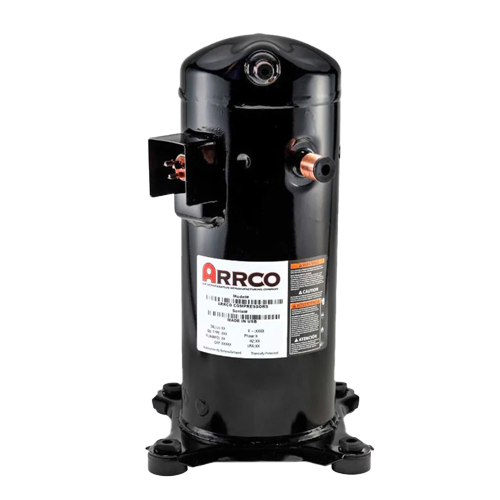

Arrco AR34KP-BFV Scroll Compressor 2.75 Ton R22 208/230V Single Phase

Description

The Arrco AR34KP-BFV is a high-efficiency scroll compressor engineered for dependable residential and light commercial HVAC applications. Rated at 2.75 tons with R22 refrigerant compatibility, this unit delivers consistent cooling performance across a wide operating range, backed by robust electrical specifications and a compact, field-ready design.

Performance Specifications

• Discharge/Suction Temperature Range: 45°F–100°F / 45°F–130°F
• Return Gas / Liquid Temperature (°F): 65–85 / 65–115
• BTU Output Range: 32,600 – 39,300 BTU/hr
• Power Consumption: 2,030 – 3,060 Watts
• Operating Current: 9.4 – 13.8 Amps

Dimensions & Weight

• Mounting Length/Width: 7.5 in
• Mounting Height: 15.97 in
• Overall Length/Width: 9.69 in
• Overall Height: 15.73 in
• Net Weight: 62.8 lbs

Electrical Specifications

• Voltage: 208/230V
• Locked Rotor Amps (LRA): 88 A
• Maximum Continuous Current (MCC): 25 A
• Maximum Operating Current: 18.7 A
• Run Load Amps – Contactor: 17.9 A
• Run Load Amps – Breaker & Wire: 16 A
• Run Capacitor: See Product Label (MFD) / 370–440V
• Start Capacitor: Not Required

Refrigerant & Connection Details

• Refrigerant Type: R22
• Oil Charge: 42 oz
• Oil Recharge: 38 oz
• Discharge Connection: 1/2 in Stub
• Suction Connection: 3/4 in Stub
