Description

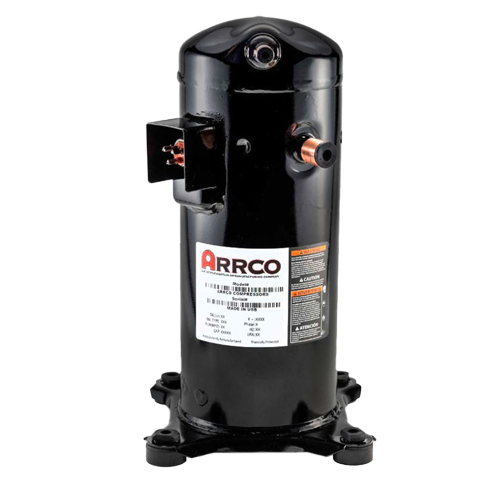

The Arrco AR42KP-BFV is a heavy-duty 42,000 BTU/hr replacement compressor designed for dependable performance in demanding HVAC applications. Supplied as a complete kit, this unit delivers efficient compression across a wide operating range and is engineered for straightforward professional installation.
Performance Specifications
- BTU/hr Output: 54,900 (high) / 40,800 (low)
- Watts: 2,440 (high) / 3,800 (low)
- Current/Amps: 10.85 (high) / 16.8 (low)
- Discharge/Suction Temperature (°F): 50/100 (high) / 45/130 (low)
- Return Gas/Liquid Temperature (°F): 70/85 (high) / 65/115 (low)
Dimensions
- Mounting Length/Width: 7.5 in
- Mounting Height: 17.17 in
- Overall Length/Width: 9.69 in
- Overall Height: 19.94 in
- Net Weight: 68.3 lbs
Electrical Specifications
- Locked Rotor Amps (LRA): 104
- MCC (Amps): 31
- Maximum Operating Current: 25 A
- Run Load Amps – Contactor: 22.1 A
- Run Load Amps – Breaker & Wire: 19.9 A
- Run Capacitor (MFD): See Product Label
- Run Capacitor Voltage: 370/440 V
- Start Capacitor (MFD): 88
- Start Capacitor Voltage: 330 V
Additional Information
- Oil Charge: 42 oz
- Oil Recharge: 34 oz
- Discharge Connection: 1/2 in Stub
- Suction Connection: 7/8 in Stub
