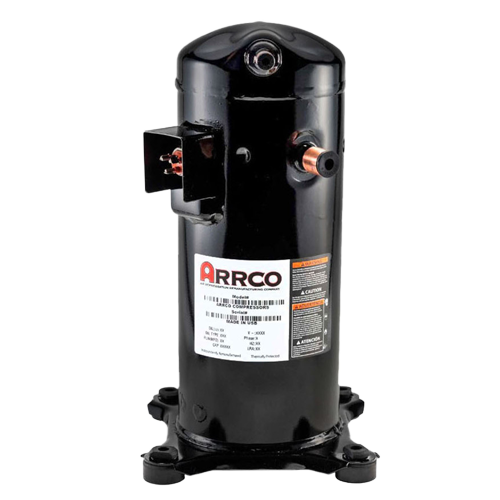

Arrco AR57KP-BFV Scroll Compressor 5 Ton 55,500 BTU R22/R407C Refrigerant

Description

The Arrco AR57KP-BFV is a heavy-duty 5-ton scroll compressor engineered for dependable performance in commercial and residential HVAC applications. Compatible with both R22 and R407C refrigerants, this unit delivers efficient cooling capacity with robust electrical characteristics to support demanding system requirements.

Performance Specifications

• Cooling Capacity: 55,500 BTU/hr
• Maximum Capacity: 67,000 BTU/hr
• Power Consumption: 3,500 – 5,250 Watts
• Operating Current: 17.1 – 24.5 Amps
• Discharge/Suction Temperature Range: 45°F–100°F / 45°F–130°F
• Return Gas / Liquid Temperature (°F): 65–85 / 65–115

Dimensions & Weight

• Mounting Length/Width: 7.5 in
• Mounting Height: 18 in
• Overall Length/Width: 9.69 in
• Overall Height: 17.75 in
• Net Weight: 90 lbs

Electrical Information

• Locked Rotor Amps (LRA): 148 A
• Maximum Continuous Current (MCC): 45 A
• Maximum Operating Current: 37 A
• Run Load Amps – Contactor: 26.4 A
• Run Load Amps – Breaker & Wire: 23.7 A
• Run Capacitor (MFD): See Product Label
• Run Capacitor Voltage: 370/440 V
• Start Capacitor (MFD): 270
• Start Capacitor Voltage: 330 V

Oil & Connection Details

• Oil Charge: 56 oz
• Oil Recharge: 52 oz
• Discharge Connection: 1/2 in Stub
• Suction Connection: 7/8 in Stub
