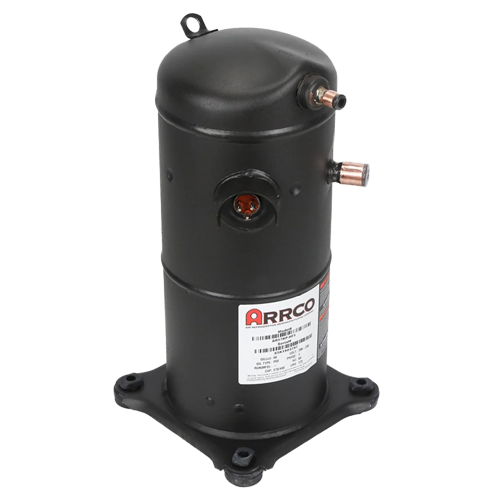

ARRCO AR57KP-HF5 57,000 BTU R407C Air Conditioner Compressor – 208/230V, 5 Ton

Description

Product Overview

The ARRCO AR57KP-HF5 is a heavy-duty 57,000 BTU commercial air conditioning compressor engineered for dependable performance in demanding HVAC applications. Designed for R407C refrigerant and rated for 208/230V 3-phase operation, this 5-ton unit delivers consistent cooling efficiency across a wide range of operating conditions.

Performance Specifications

• BTU Capacity: 66,200 / 54,900 BTU per hour
• Discharge / Suction Temperature: 45°F / 100°F – 45°F / 130°F
• Refrigerant Gas / Liquid Temperature (°F): 65–85 / 65–115
• Power Consumption: 3,390 – 5,120 Watts
• Operating Current: 11.35 – 15.25 Amps

Dimensions & Weight

• Mounting Length/Width: 7.5 in
• Mounting Height: 17.99 in
• Overall Length/Width: 9.69 in
• Overall Height: 17.24 in
• Net Weight: 85 lbs

Electrical Specifications

• Locked Rotor Amps (LRA): 123 A
• Maximum Continuous Current (MCC): 27 A
• Maximum Operating Current: 18 A
• Run Load Amps – Contactor: 12.9 A
• Run Load Amps – Breaker & Wire: 11.5 A
• Run Capacitor: N/A
• Start Capacitor: N/A

Additional Specifications

• Oil Charge: 66 oz
• Oil Recharge: 62 oz
• Discharge Connection: 1/2 in Stub
• Suction Connection: 7/8 in Stub
