Description
Overview

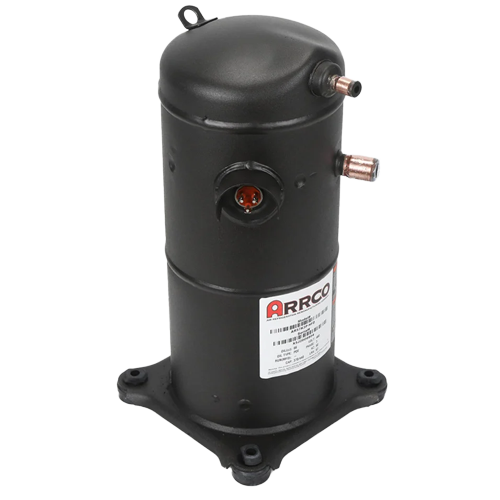

The ARRCO AR57KP-HFD is a heavy-duty three-phase compressor engineered for commercial HVAC systems operating on R-22 or R-407C refrigerants. Designed for 460 VAC three-phase power, this unit delivers dependable cooling performance across a wide range of operating conditions, making it a trusted choice for replacement and new installations alike.
Performance Specifications
- BTU/hr Output: 58,500 – 68,500 BTU/hr
- Wattage: 3,440 – 5,000 W
- Current Draw: 5.6 – 7.3 Amps
- Discharge / Suction Temperature (°F): 45/100 – 45/130
- Return Gas / Liquid Temperature (°F): 65/85 – 65/115
Electrical Specifications
- Voltage: 460 VAC, 3-Phase
- Locked Rotor Amps (LRA): 62 A
- Maximum Continuous Current (MCC): 12.8 A
- Maximum Operating Current: 11 A
- Run Load Amps – Contactor: 7.9 A
- Run Load Amps – Breaker & Wire: 7.1 A
- Run Capacitor: Not Required
- Start Capacitor: Not Required
Physical Dimensions
- Mounting Length/Width: 7.5 in
- Mounting Height: 17.99 in
- Overall Length/Width: 9.69 in
- Overall Height: 17.24 in
- Net Weight: 85 lbs
Oil & Connection Details
- Oil Charge: 66 oz
- Oil Recharge: 62 oz
- Discharge Connection: 1/2 in Stub
- Suction Connection: 7/8 in Stub
Compatible Refrigerants
- R-22
- R-407C
