Overview

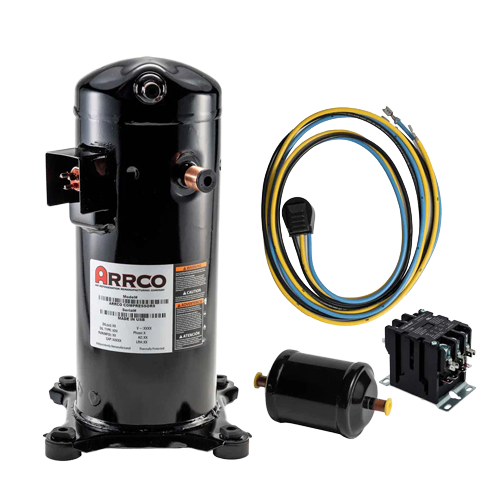

The ARRCO AR72KP-HF5 is a heavy-duty scroll compressor engineered for reliable performance in commercial and residential HVAC applications. Delivering a nominal capacity of 72,000 BTU/hr, this unit is compatible with both R-22 and R-407C refrigerants and is designed for 208/230 VAC, 60 Hz, 3-Phase power systems — making it a versatile drop-in solution for a wide range of installations.
Product Highlights
Built for durability and ease of installation, the AR72KP-HF5 features a thermally protected motor that safeguards against overheating and extends service life. The unit ships complete with a capacitor, filter drier, and a 5-foot wiring harness, reducing installation time and ensuring everything you need is ready out of the box.
Key Features
- 72,000 BTU/hr nominal cooling capacity
- Compatible with R-22 and R-407C refrigerants
- 208/230 VAC, 60 Hz, 3-Phase power supply
- Thermally protected motor for enhanced durability
- 7/8-inch suction fitting and 1/2-inch discharge fitting
- Includes capacitor and filter drier
- Complete with 5-foot wiring harness for simplified installation
- New condition
Technical Specifications
- Brand: ARRCO
- MPN: AR72KP-HF5
- Nominal Capacity: 72,000 BTU/Hour
- Voltage Rating: 208/230 Volt AC, 60 Hz, 3-Phase
- Refrigerant Type: R-22 / R-407C
- Motor Type: Thermally Protected
- Application: HVAC System
- Suction Fitting Size: 7/8 Inch
- Discharge Fitting Size: 1/2 Inch
- Condition: New
