Description

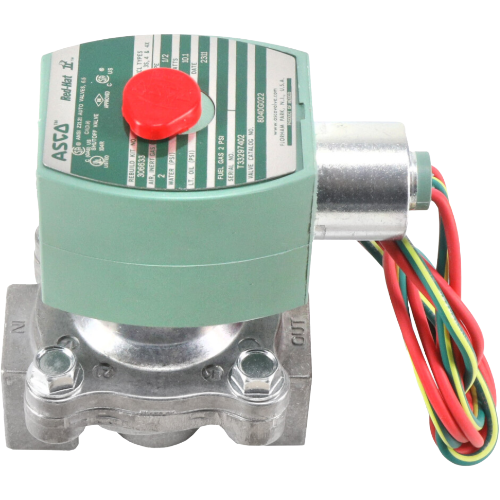

ASCO 8040G22 Two-Way Normally Closed Solenoid Valve
The ASCO 8040G22 is a heavy-duty, two-way normally closed solenoid valve engineered for reliable fuel gas shutoff and control in demanding commercial and industrial HVAC applications. With a rugged aluminum body, NBR (Buna-N) seals, and a NEMA 4X rated enclosure, this valve is built to perform in wet, corrosive, and outdoor environments where protection against dust and moisture is critical.
Key Features
- 2-Way, Normally Closed (NC) configuration — valve closes automatically when de-energized for fail-safe operation
- 1/2″ NPT pipe connection for straightforward installation into standard fuel gas piping systems
- 120VAC coil voltage for compatibility with common commercial control circuits
- 5.4 Cv flow coefficient for efficient fuel gas flow management
- Operating pressure range: 0–2 PSI, optimized for low-pressure fuel gas service
- Aluminum body construction — lightweight yet durable for long service life
- NBR (Nitrile Butadiene Rubber) seals — excellent resistance to fuel gases and petroleum-based media
- NEMA 4X enclosure rating — provides protection against corrosion, windblown dust, rain, splashing water, and hosedown
Specifications
- SKU / Model: 8040G22
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC)
- Pipe Size: 1/2″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 5.4
- Pressure Range: 0–2 PSI
- Media: Fuel Gas
- Body Material: Aluminum
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Enclosure Rating: NEMA 4X
Applications
- Fuel gas shutoff and flow control in commercial HVAC systems
- Burner management and combustion control applications
- Industrial gas distribution and process control
- Outdoor or wash-down environments requiring NEMA 4X protection
Why Choose the ASCO 8040G22?
ASCO is a globally recognized leader in fluid automation and solenoid valve technology. The 8040G22 combines proven ASCO reliability with a robust NEMA 4X aluminum enclosure and fuel-gas-rated NBR seals, making it an ideal choice for technicians and engineers who need a dependable, code-compliant valve for low-pressure fuel gas service. The normally closed design ensures the valve defaults to a safe, closed position during power interruptions, providing an added layer of safety in critical fuel gas applications.
