Description

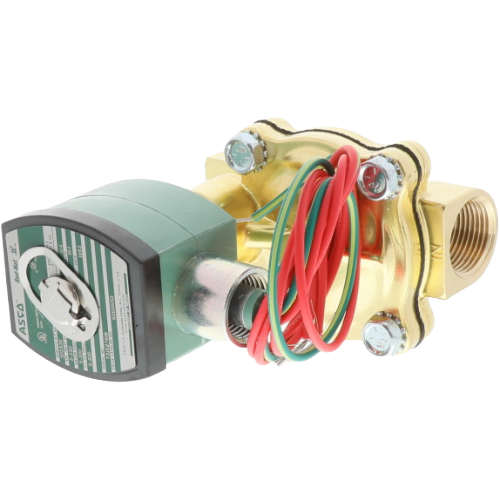

The ASCO 8210G13 is a general-service, pilot-operated, 2-way normally open solenoid valve engineered for reliable fluid control in demanding commercial and industrial HVAC applications. With a robust brass body and NBR seals, this valve delivers dependable performance across a wide range of media including air, water, and light oil.
Key Features
- 2-way, normally open (N.O.) configuration — valve opens when de-energized, closes when energized
- Pilot-operated design for efficient actuation across a broad pressure range
- 3/4″ NPT port connections for straightforward installation into standard piping systems
- 120VAC coil voltage for compatibility with common commercial power supplies
- High flow capacity with a 6.5 Cv flow coefficient
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) seals suitable for use with air, water, and light oil media
- NEMA 4X enclosure rating — provides protection against corrosion, dust, and water ingress (indoor/outdoor use)
Specifications
- SKU: 8210G13
- Brand: ASCO
- Valve Type: 2-Way, Normally Open, Pilot Operated
- Connection Size: 3/4″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 6.5
- Pressure Range — Air: 5–250 PSI
- Pressure Range — Water & Light Oil: 5–200 PSI
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Service: General Service
- Compatible Media: Air, Water, Light Oil
Applications
- HVAC air and water control systems
- Commercial and industrial fluid handling
- Process control and automation
- Pneumatic and hydraulic systems requiring on/off flow control
- Outdoor or washdown environments requiring NEMA 4X protection
