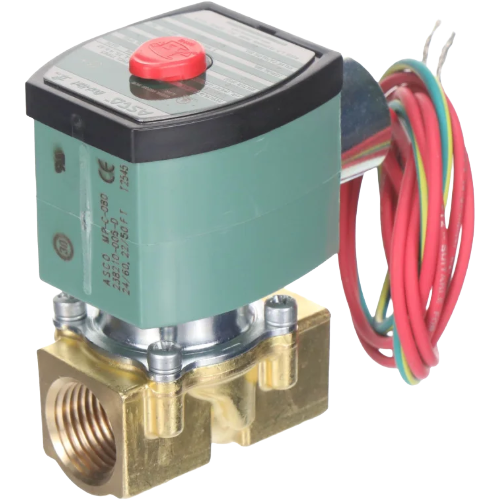

ASCO 8210G202-24V General Service Solenoid Valve Overview
The ASCO 8210G202-24V is a heavy-duty, 2-way normally closed solenoid valve engineered for reliable on/off control of air and water in general-service HVAC and industrial applications. With a brass body construction, NBR (Buna-N) seals, and a NEMA 4X rated enclosure, this valve is built to withstand demanding environments while delivering consistent, leak-free performance.
Key Features
- 2-Way, Normally Closed (NC) operation — valve closes automatically when de-energized for fail-safe control
- 1/2″ NPT pipe connection for straightforward installation into standard piping systems
- 24VAC coil voltage for compatibility with low-voltage HVAC control systems
- 3 Cv flow coefficient for efficient media flow with minimal pressure drop
- Operating pressure range: 5–150 PSI for broad application versatility
- Brass body construction for excellent corrosion resistance and durability
- NBR (Nitrile Butadiene Rubber) seals — compatible with air, water, and a wide range of general-service media
- NEMA 4X enclosure rating — provides protection against dust, splashing water, and corrosion, suitable for indoor and outdoor use
Applications
- HVAC air and water control systems
- Chilled and hot water piping circuits
- Compressed air systems
- General-purpose fluid control in commercial and light industrial settings
Specifications
- Brand: ASCO
- Model / SKU: 8210G202-24V
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC)
- Pipe Size: 1/2″ NPT
- Coil Voltage: 24VAC
- Flow Coefficient (Cv): 3
- Pressure Range: 5–150 PSI
- Body Material: Brass
- Seal Material: NBR (Nitrile / Buna-N)
- Enclosure Rating: NEMA 4X
- Media: Air and Water (General Service)
