Description

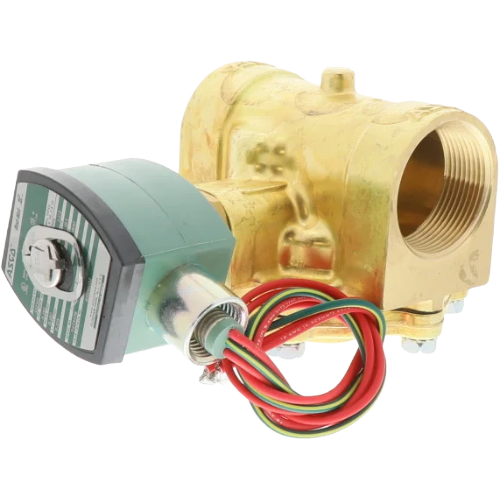

ASCO 8210G32 General Service Solenoid Valve Overview
The ASCO 8210G32 is a 2-way, normally open, pilot-operated solenoid valve engineered for reliable general service applications across HVAC, industrial, and fluid control systems. Built with a robust brass body and NBR (Buna-N) seals, this valve delivers dependable performance for air, water, and light oil service. The NEMA 4X enclosure provides excellent protection against dust, moisture, and corrosion, making it suitable for both indoor and outdoor installations.
Key Features
- 2-way, normally open (N/O) configuration — valve opens when de-energized
- Pilot-operated design for efficient, low-power actuation
- 1-1/2″ NPT port connection for straightforward installation
- 120VAC coil voltage for compatibility with standard electrical systems
- High flow capacity with a 22.5 Cv flow coefficient
- Brass body construction for corrosion resistance and durability
- NBR (Nitrile Buna-N) seals for broad fluid compatibility
- NEMA 4X enclosure rating — suitable for wet, dusty, and corrosive environments
Performance Specifications
- Voltage: 120VAC
- Connection: 1-1/2″ NPT
- Flow Coefficient (Cv): 22.5
- Pressure Range — Air and Water: 5–150 PSI
- Pressure Range — Light Oil: 5–125 PSI
- Valve Action: Normally Open (N/O)
- Operation: Pilot Operated
- Body Material: Brass
- Seal Material: NBR (Nitrile)
- Enclosure Rating: NEMA 4X
Compatible Media
- Air
- Water
- Light Oil
Applications
- HVAC water and air control systems
- Industrial fluid control
- Light oil service lines
- Automated process control systems requiring normally open valve operation
