Description

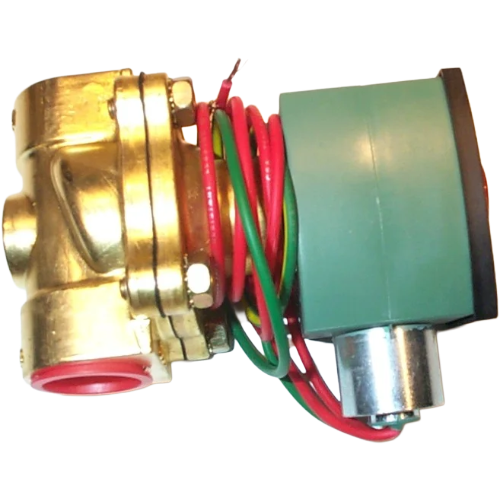

ASCO 8210G35-24VDC General Service Solenoid Valve Overview
The ASCO 8210G35-24VDC is a 2-way, normally open, pilot-operated solenoid valve engineered for reliable general service applications in HVAC, plumbing, and light industrial systems. Built with a durable brass body and NBR (Buna-N) seals, this valve delivers dependable shut-off performance for air, water, and light oil service. The NEMA 4X enclosure provides protection against dust, splashing water, and corrosive environments, making it well-suited for both indoor and outdoor installations.
Key Features
- 2-way, normally open (N.O.) pilot-operated design
- 3/4″ NPT port connection for easy installation
- 24VDC coil voltage for low-voltage control system compatibility
- 5.5 Cv flow coefficient for efficient fluid flow
- Pressure rating: 0–125 PSI for air and water service
- Pressure rating: 0–80 PSI for light oil service
- Brass body construction for corrosion resistance and long service life
- NBR (Nitrile Butadiene Rubber) seals for compatibility with air, water, and light oil media
- NEMA 4X enclosure for protection in harsh or wet environments
Specifications
- SKU: 8210G35-24VDC
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Open (N.O.), Pilot Operated
- Port Size: 3/4″ NPT
- Coil Voltage: 24VDC
- Flow Coefficient (Cv): 5.5
- Max Pressure – Air & Water: 125 PSI
- Max Pressure – Light Oil: 80 PSI
- Body Material: Brass
- Seal Material: NBR (Nitrile)
- Enclosure Rating: NEMA 4X
- Service: General Purpose
- Media: Air, Water, Light Oil
Applications
- HVAC air and water control systems
- Compressed air lines and pneumatic systems
- Light oil distribution and shut-off
- Commercial and industrial fluid control
- Outdoor or washdown environments requiring NEMA 4X protection
Why Choose the ASCO 8210G35-24VDC?
ASCO is a globally recognized leader in solenoid valve technology. The 8210 Series is designed for general service duty with a focus on long cycle life, consistent performance, and broad media compatibility. The NEMA 4X-rated enclosure and brass body make this valve a go-to choice for contractors and engineers who need a dependable, low-maintenance solution across a wide range of fluid control applications.
