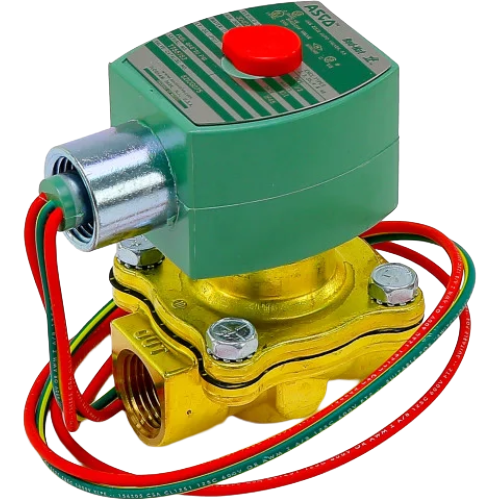

ASCO 8210G75 2-Way Normally Closed Gas Solenoid Valve
The ASCO 8210G75 is a heavy-duty, pilot-operated gas shutoff solenoid valve engineered for reliable automatic control of gas flow in commercial and industrial HVAC applications. With a 2-way, normally closed configuration, the valve remains safely shut when de-energized, providing a critical layer of protection in gas supply systems.
Key Features
- 2-Way, Normally Closed (NC) operation — valve closes automatically when power is removed
- 1/2″ NPT pipe connection for straightforward installation into standard gas lines
- 120VAC coil voltage for compatibility with common commercial power supplies
- 3.6 Cv flow coefficient delivering up to 193,000 BTU/hr gas capacity
- Pilot-operated design for efficient, low-power actuation across the rated pressure range
- Operating pressure range: 0–50 PSI
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) seals providing excellent resistance to natural gas and LP gas media
- NEMA 4X enclosure rating — suitable for indoor and outdoor installations, resistant to washdown, rain, and corrosion
Application
The ASCO 8210G75 is ideal for use as a gas shutoff valve in burner management systems, commercial heating equipment, boilers, rooftop units, and other gas-fired HVAC appliances. Its pilot-operated mechanism ensures smooth, reliable actuation, while the NEMA 4X-rated coil enclosure makes it well-suited for demanding environments where moisture or contaminants may be present.
Specifications
- SKU: 8210G75
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC)
- Actuation: Pilot Operated
- Pipe Size: 1/2″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 3.6
- Gas Capacity: 193,000 BTU/hr
- Pressure Range: 0–50 PSI
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Coil Enclosure: NEMA 4X
- Media: Gas (Natural Gas / LP)
