Description

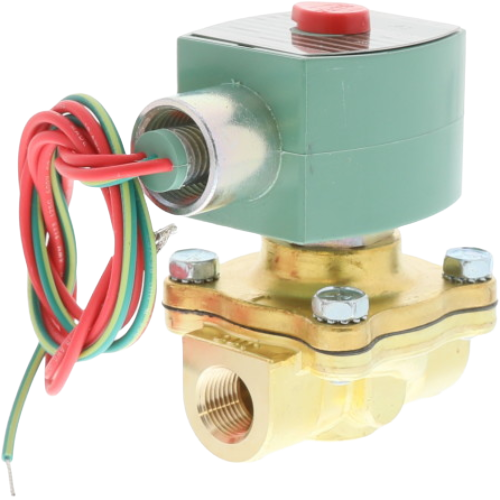

The ASCO 8210G93 is a general-service, pilot-operated solenoid valve engineered for reliable on/off control of air and water in demanding commercial and industrial HVAC applications. Its robust brass body and NBR (Buna-N) seals deliver long-lasting performance across a wide range of media, while the NEMA 4X enclosure provides protection against dust, splashing water, and corrosion — making it suitable for both indoor and outdoor installations.
Key Features
- 2-way, normally closed (NC) configuration — valve closes when de-energized for fail-safe operation
- Pilot-operated design for efficient, low-power actuation
- 3/8″ NPT port connection for easy inline installation
- 120VAC coil voltage for standard electrical compatibility
- 3 Cv flow coefficient for optimized flow capacity
- Operating pressure range: 0–150 PSI
- Compatible media: air and water
- Brass body construction for corrosion resistance and durability
- NBR (Nitrile Butadiene Rubber) seals for reliable sealing performance
- NEMA 4X enclosure rating — suitable for wet, dusty, and outdoor environments
Specifications
- SKU: 8210G93
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC)
- Actuation: Pilot Operated
- Port Size: 3/8″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 3
- Pressure Range: 0–150 PSI
- Body Material: Brass
- Seal Material: NBR (Nitrile)
- Enclosure Rating: NEMA 4X
- Compatible Media: Air, Water
- Service Type: General Service
Applications
- HVAC air and water flow control
- Commercial and industrial fluid automation
- Pneumatic system on/off control
- Process control and building automation systems
- Outdoor and washdown environments requiring NEMA 4X protection
