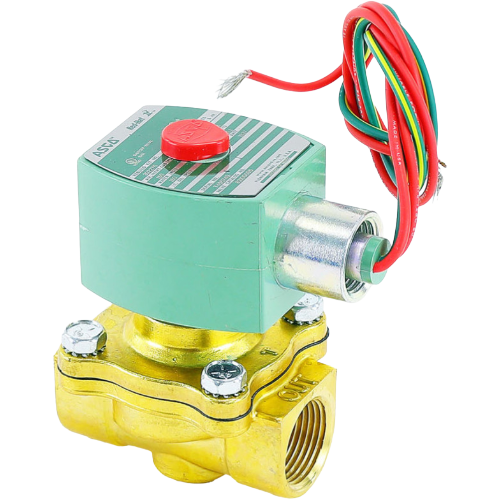

ASCO 8210G95-24V General Service Solenoid Valve Overview
The ASCO 8210G95-24V is a 2-way, normally closed, pilot-operated solenoid valve engineered for reliable general-service fluid control in HVAC, industrial, and commercial applications. Designed to handle both air and water media, this valve delivers dependable on/off control with a robust brass body construction and a NEMA 4X-rated enclosure for use in wet or corrosive environments.
Key Specifications
- Valve Type: 2-Way, Normally Closed (NC)
- Operation: Pilot Operated
- Port Size: 3/4″ NPT
- Coil Voltage: 24VAC
- Flow Coefficient (Cv): 5
- Pressure Range: 0–150 PSI
- Media: Air and Water
- Body Material: Brass
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Enclosure Rating: NEMA 4X
Design & Construction
The brass body provides excellent corrosion resistance and durability in demanding service conditions. NBR seals offer reliable compatibility with water and air media across the full rated pressure range. The NEMA 4X enclosure protects the solenoid coil against dust, splashing water, and corrosive environments — making this valve well-suited for both indoor and outdoor installations.
Pilot-Operated Performance
The pilot-operated design leverages line pressure to open and close the valve, enabling a compact coil to control larger flow passages with minimal power consumption. With a Cv of 5 and a 3/4″ NPT connection, this valve delivers strong flow capacity for its size class.
Typical Applications
- HVAC water and air control systems
- Irrigation and water distribution
- Industrial process control
- General-purpose pneumatic and fluid systems
- Equipment requiring normally closed fail-safe operation
Why Choose the ASCO 8210G95-24V?
ASCO is a globally recognized leader in solenoid valve technology. The 8210 Series is a proven general-service platform trusted by engineers and technicians for its consistent performance, long service life, and broad media compatibility. The NEMA 4X rating and brass construction make this valve a go-to choice when installation environments demand extra protection.
