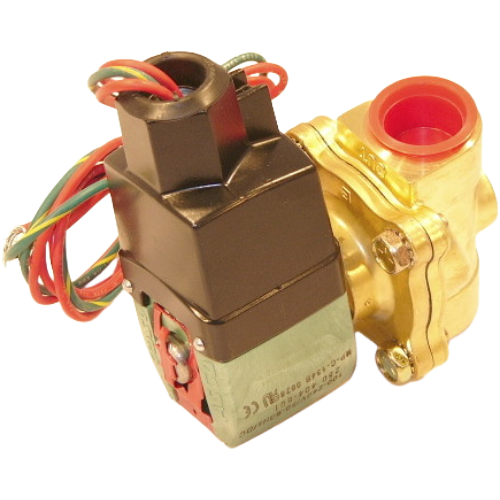

ASCO 8210P95-100/240V Electronically Enhanced General Service Solenoid Valve
The ASCO 8210P95-100/240V is a 2-way, normally closed, electronically enhanced general service solenoid valve engineered for dependable on/off control of air and water in demanding commercial and industrial HVAC applications. Featuring a rugged brass body, NBR (Buna-N) seals, and a NEMA 4X rated enclosure, this valve delivers reliable performance in both indoor and outdoor environments where moisture and corrosion resistance are essential.
Key Features
- 2-way, normally closed (N.C.) configuration — valve closes when de-energized for fail-safe operation
- Electronically enhanced design allows operation across a wide voltage range without separate coils
- Wide voltage compatibility: 100–240V AC and 100–240V DC on a single coil
- 3/4″ NPT pipe connection for straightforward installation into standard piping systems
- 5 Cv flow coefficient for efficient fluid handling
- Operating pressure range: 0–150 PSI
- Suitable for air and water media
- Brass body construction for corrosion resistance and long service life
- NBR (Nitrile Butadiene Rubber) seals for compatibility with water and air applications
- NEMA 4X enclosure rating — suitable for indoor/outdoor use, washdown environments, and corrosive atmospheres
Specifications
- Brand: ASCO
- Model / SKU: 8210P95-100/240V
- Valve Type: 2-Way Solenoid Valve, Normally Closed
- Pipe Size: 3/4″ NPT
- Flow Coefficient (Cv): 5
- Voltage: 100–240V AC / 100–240V DC
- Operating Pressure: 0–150 PSI
- Media: Air and Water
- Body Material: Brass
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Enclosure Rating: NEMA 4X
- Service Type: Electronically Enhanced General Service
Application
Designed for general service HVAC, plumbing, and light industrial applications, the ASCO 8210P95-100/240V is ideal for controlling air or water flow in equipment rooms, mechanical systems, and process lines. The electronically enhanced coil technology ensures consistent operation across a broad input voltage range — eliminating the need for multiple coil SKUs when voltage supply varies. The NEMA 4X enclosure makes it a strong choice for installations exposed to hose-directed water, condensation, or corrosive conditions.
