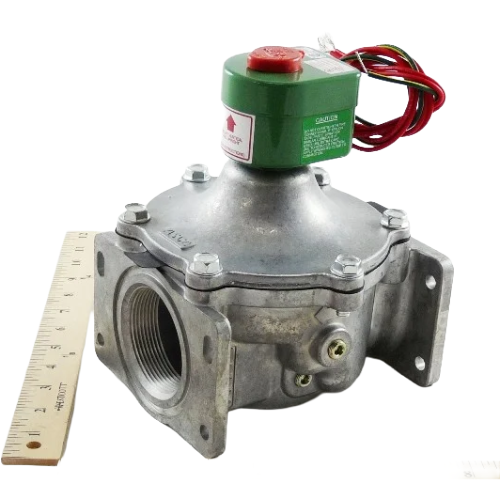

ASCO 8214280CSA 2-Way Normally Closed Fuel Gas Solenoid Shutoff Valve
The ASCO 8214280CSA is a heavy-duty, 2-way normally closed solenoid shutoff valve engineered for reliable fuel gas control in commercial and industrial HVAC and combustion applications. With a generous 2-inch connection size available in both NPT and flange configurations, this valve delivers exceptional flow capacity and installation flexibility to meet the demands of high-BTU systems.
Key Features
- 2-way, normally closed solenoid valve — de-energizes to the closed (safe) position for reliable fuel gas shutoff
- 2″ NPT or flange connection — versatile mounting options for a wide range of piping configurations
- 120VAC coil voltage — compatible with standard commercial power supplies
- 55 Cv flow coefficient — engineered for high-volume gas flow applications
- 2,940,500 BTU/hr capacity — ideal for large commercial and industrial burner systems
- 0–5 PSI operating pressure range — suited for low-pressure fuel gas supply lines
- Aluminum body construction — lightweight yet durable for demanding service environments
- NBR (Buna-N) seals — excellent resistance to natural gas, propane, and other common fuel gases
- NEMA 1 enclosure — suitable for indoor, general-purpose installations
Applications
- Commercial and industrial fuel gas shutoff
- Burner management and combustion control systems
- Boiler and furnace gas supply lines
- HVAC equipment with high BTU input requirements
Specifications
- SKU: 8214280CSA
- Brand: ASCO
- Valve Type: 2-Way Solenoid, Normally Closed
- Connection Size: 2″
- Connection Type: NPT or Flange
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 55
- Capacity: 2,940,500 BTU/hr
- Pressure Range: 0–5 PSI
- Body Material: Aluminum
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 1
- Media: Fuel Gas
