Description

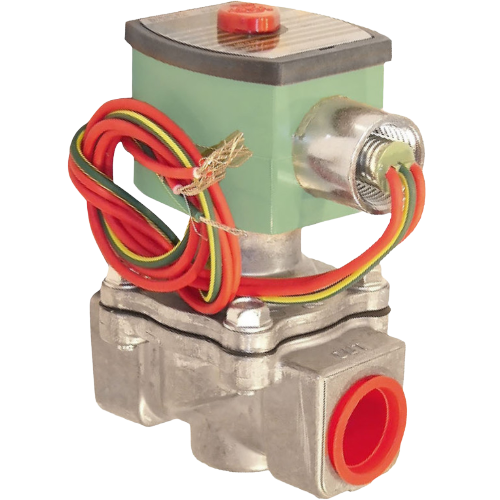

The ASCO 8214G13 is a 2-way, normally open solenoid valve engineered specifically for fuel gas venting applications in commercial and industrial HVAC and combustion systems. Designed to open when de-energized, this valve provides a reliable fail-safe vent path, making it an essential safety component in gas train assemblies and burner management systems.
Key Features
- 2-way, normally open (N.O.) configuration for fail-safe fuel gas venting
- 3/8″ NPT pipe connection for straightforward installation into standard gas piping
- 120VAC coil voltage for compatibility with common commercial control circuits
- Flow coefficient (Cv) of 3.4 for efficient gas flow management
- Rated capacity of 172,500 BTU/hr to support high-demand burner applications
- Operating pressure range of 0–5 PSI, ideal for low-pressure fuel gas systems
- Aluminum body construction for lightweight durability and corrosion resistance
- NBR (Buna-N) seals for reliable compatibility with natural gas and other fuel gases
- NEMA 4X enclosure rating for protection against dust, splashing water, and corrosion — suitable for indoor and outdoor installations
Application
The ASCO 8214G13 is ideally suited for use as a vent valve in gas train safety systems, where it opens automatically upon de-energization to safely vent trapped gas between two safety shutoff valves. This configuration is commonly required by codes such as NFPA 86 for industrial furnaces and ovens, as well as in commercial boiler and burner installations.
Specifications
- SKU: 8214G13
- Brand: ASCO
- Valve Type: Solenoid Valve
- Configuration: 2-Way, Normally Open
- Connection Size: 3/8″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 3.4
- Capacity: 172,500 BTU/hr
- Pressure Range: 0–5 PSI
- Body Material: Aluminum
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Media: Fuel Gas
