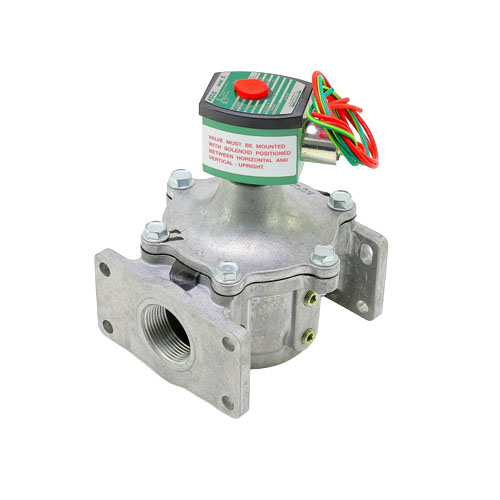

ASCO 8214G261 Fuel Gas Solenoid Shutoff Valve Overview
The ASCO 8214G261 is a heavy-duty 2-way, normally closed solenoid shutoff valve engineered specifically for fuel gas applications. Designed for reliable, automatic shutoff in commercial and industrial HVAC and combustion systems, this valve delivers proven ASCO performance with a robust aluminum body and durable NBR seals.
Key Features
- 2-way, normally closed (N/C) operation — valve closes automatically upon power loss for fail-safe fuel shutoff
- 1-1/4″ connection size with NPT or flange end options for flexible installation
- 120VAC coil voltage for standard commercial power compatibility
- High flow capacity with a 32 Cv flow coefficient — rated for up to 1,725,500 BTU/hr
- Operating pressure range: 0–5 PSI, ideal for low-pressure fuel gas systems
- Aluminum body construction for lightweight durability and corrosion resistance
- NBR (Buna-N) seals for reliable compatibility with natural gas and other fuel gas media
- NEMA 4X enclosure rating — provides protection against dust, water, and corrosion for indoor and outdoor installations
Specifications
- SKU: 8214G261
- Brand: ASCO
- Valve Type: 2-Way Solenoid, Normally Closed
- Connection Size: 1-1/4″
- Connection Type: NPT or Flange
- Voltage: 120VAC
- Flow Coefficient (Cv): 32
- BTU Capacity: 1,725,500 BTU/hr
- Pressure Range: 0–5 PSI
- Body Material: Aluminum
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Media: Fuel Gas
Applications
- Commercial and industrial fuel gas shutoff
- Boiler and burner fuel supply control
- Combustion equipment safety shutoff
- HVAC heating systems with gas-fired equipment
- Outdoor or wash-down environments requiring NEMA 4X protection
