Description

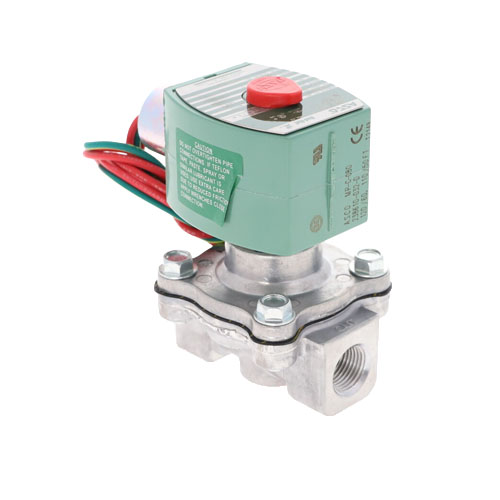

ASCO 8215G10 2-Way Normally Closed Air-Fuel Gas Shutoff Solenoid Valve
The ASCO 8215G10 is a heavy-duty, 2-way normally closed solenoid valve engineered for reliable air and fuel gas shutoff applications in commercial and industrial HVAC and combustion systems. With a robust aluminum body, NBR seals, and a NEMA 4X rated enclosure, this valve delivers dependable performance in demanding environments where moisture and corrosion resistance are essential.
Key Features
- 2-way, normally closed (N/C) solenoid valve — closes automatically when de-energized for fail-safe operation
- 3/8″ NPT pipe connection for straightforward installation in standard gas lines
- 120VAC coil voltage for compatibility with common commercial power supplies
- 3.4 Cv flow coefficient supporting up to 183,000 BTU/hr capacity
- Operating pressure range: 0–50 PSI
- Aluminum valve body for lightweight strength and corrosion resistance
- NBR (Buna-N) seals for excellent compatibility with air, natural gas, and fuel gas media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, resistant to washdowns, rain, and corrosion
Specifications
- SKU: 8215G10
- Brand: ASCO
- Valve Type: 2-Way Solenoid, Normally Closed
- Connection Size: 3/8″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 3.4
- Capacity: 183,000 BTU/hr
- Pressure Range: 0–50 PSI
- Body Material: Aluminum
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Enclosure Rating: NEMA 4X
- Media: Air, Fuel Gas
Application
Ideal for use in gas burner systems, boilers, furnaces, rooftop units, and other commercial combustion equipment requiring a dependable, electrically actuated gas shutoff. The normally closed design ensures the gas supply is automatically interrupted upon loss of power, providing a critical layer of safety in any fuel gas application.
