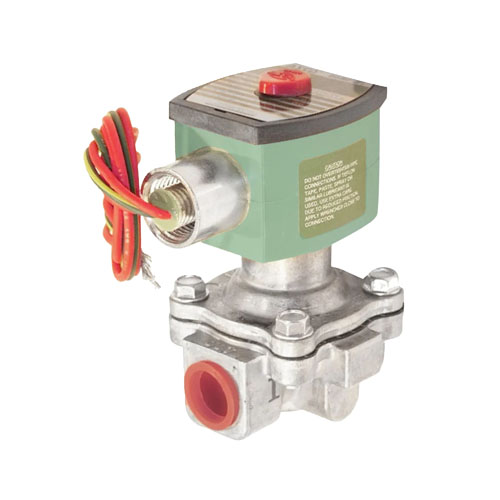

ASCO 8215G23 Two-Way Normally Open Solenoid Valve Overview
The ASCO 8215G23 is a heavy-duty, two-way normally open solenoid valve engineered for demanding air and fuel gas vent applications in commercial and industrial HVAC systems. Featuring a rugged aluminum body, NBR (Buna-N) seals, and a NEMA 4X rated enclosure, this valve delivers reliable, long-life performance in harsh or wet environments where corrosion resistance is essential.
Key Features
- 2-Way, Normally Open (N.O.) configuration — valve opens when de-energized for fail-safe operation
- 1/2″ NPT port connections for straightforward installation into standard piping
- 120VAC operating voltage for compatibility with common commercial control circuits
- 4 Cv flow coefficient supporting high-capacity airflow and gas throughput
- 206,250 BTU/hr rated capacity for fuel gas vent service
- Operating pressure range: 0–125 PSI
- Aluminum body construction for lightweight strength and corrosion resistance
- NBR (Nitrile Butadiene Rubber) seals — compatible with air, natural gas, and LP gas media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, resistant to washdown, rain, and corrosion
Application
The ASCO 8215G23 is ideally suited for fuel gas vent valve service, air shutoff, and safety interlock applications in commercial boilers, burner systems, and industrial HVAC equipment. The normally open design ensures the valve defaults to the open (flow) position upon loss of power, making it a critical component in safety and vent circuits.
Specifications
- SKU: 8215G23
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Open (N.O.)
- Port Size: 1/2″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 4
- BTU/hr Rating: 206,250
- Pressure Range: 0–125 PSI
- Body Material: Aluminum
- Seal Material: NBR (Nitrile)
- Enclosure Rating: NEMA 4X
- Media: Air, Fuel Gas
