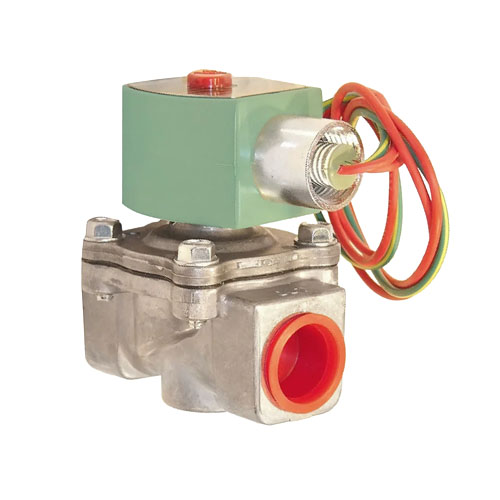

ASCO 8215G3 Two-Way Normally Closed Solenoid Valve
The ASCO 8215G3 is a heavy-duty, 2-way normally closed solenoid valve engineered for reliable air service in commercial and industrial HVAC applications. Featuring a 3/4″ NPT connection, this valve delivers precise on/off flow control with a generous 5.1 Cv flow coefficient, making it well-suited for systems requiring consistent, high-flow performance across a wide operating pressure range of 5 to 125 PSI.
Key Features
- 2-way, normally closed (NC) configuration — valve closes automatically when de-energized for fail-safe operation
- 3/4″ NPT pipe connection for straightforward installation into standard air service lines
- 120VAC coil voltage for compatibility with common commercial power supplies
- 5.1 Cv flow coefficient for high-capacity air flow performance
- Operating pressure range: 5–125 PSI — suitable for a broad range of air service applications
- Aluminum body construction — lightweight, corrosion-resistant, and durable
- NBR (Nitrile Butadiene Rubber) seals — excellent resistance to air, water, and many common fluids
- NEMA 4X enclosure rating — provides protection against corrosion, dust, and water ingress, including washdown environments
Application
The ASCO 8215G3 is ideal for controlling compressed air in HVAC systems, pneumatic controls, industrial automation, and other air service applications where reliable solenoid-actuated flow control is required. The NEMA 4X enclosure makes it suitable for both indoor and outdoor installations where moisture or contaminants may be present.
Specifications
- SKU: 8215G3
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC)
- Pipe Size: 3/4″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 5.1
- Pressure Range: 5–125 PSI
- Media: Air Service
- Body Material: Aluminum
- Seal Material: NBR (Nitrile)
- Enclosure Rating: NEMA 4X
